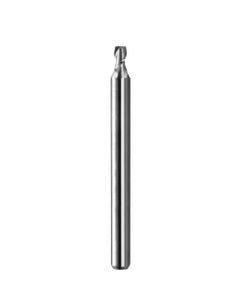

08538 .0600 2FL .015R EM
Item #: DD9008538
Brand: KYOCERA SGS Precision Tools
Model #: 08538
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 0.06″ |
| Tool Type | Solid Carbide Endmill |
| Connection Diameter Machine Side (DCONMS) | 1/8″ |
| Length Group | 3D |
| Depth of Cut Maximum (APMX) | 0.18″ |
| Flute Type | Spiral |
| Overall Length (OAL) | 1-1/2″ |
| Coolant Supply Property (CSP) | External |
| Cutting Edge Material | Carbide |
| Body Material | Carbide |
| Coating | Uncoated |
| Series/List # | M2C |
| Flute Count (NOF) | 2 |
| Shank Size (SS) | 1/8″ |
| Flute Helix Angle (FHA) | 30 Degrees |
| Shank Length (LS) | 1.32″ |
| Shank Type | Round |
| Corner Radius (RE) / Chamfer Width (CHW) | 0.015″ |
| End Shape | Corner Radius |
| Cutting Direction (HAND) | Right Hand |
| Usable Length (LU) | 0.18″ |
| Single / Double End | Single End |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | Other Non-Metallic Materials | |
| Center Cutting | Yes |
| Corner Radius (RE) | 0.015″ |
