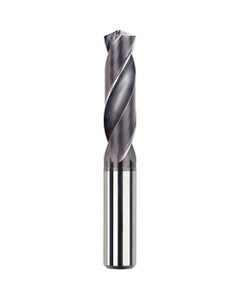

10.2 mm Dia. × 12 mm Shank × 55 mm Flute Length × 102 mm OAL, 3xD, TiAlCN, 2 Flute, Coolant Thru, h6, Cylindrical, Solid Carbide Drill Series/List #NG12
Item #: MT029547591
Brand: Morse Cutting Tools
Model #: GXC0310200T9
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 10.2 mm |
| Tool Type | High Performance Carbide Drill |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 10.2 mm |
| Flute Type | Helical |
| Length Group | 3xD |
| Measurement Type | Metric |
| Coating | TiAlCN |
| Series/List # | DBIC28 |
| Applicable Material | | Stainless Steel | Hard Materials | |
| Usable Length (LU) | 55 mm |
| Connection Diameter Machine Side (DCONMS) | 12 mm |
| Length Chip Flute (LCF) | 55 mm |
| Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 102 mm |
| Point Angle (SIG) | 30 Degrees |
| Flute Count (NOF) | 2 |
| Functional Length (LF) | 55 mm |
| Feature | SINGLE MARGIN DRILL, COOLANT THRU |
| Flute Helix Angle (FHA) | 30 Degrees |
| Cutting Direction (HAND) | Right Hand |
| Shank Type | Round |
| Body Material | Carbide |
