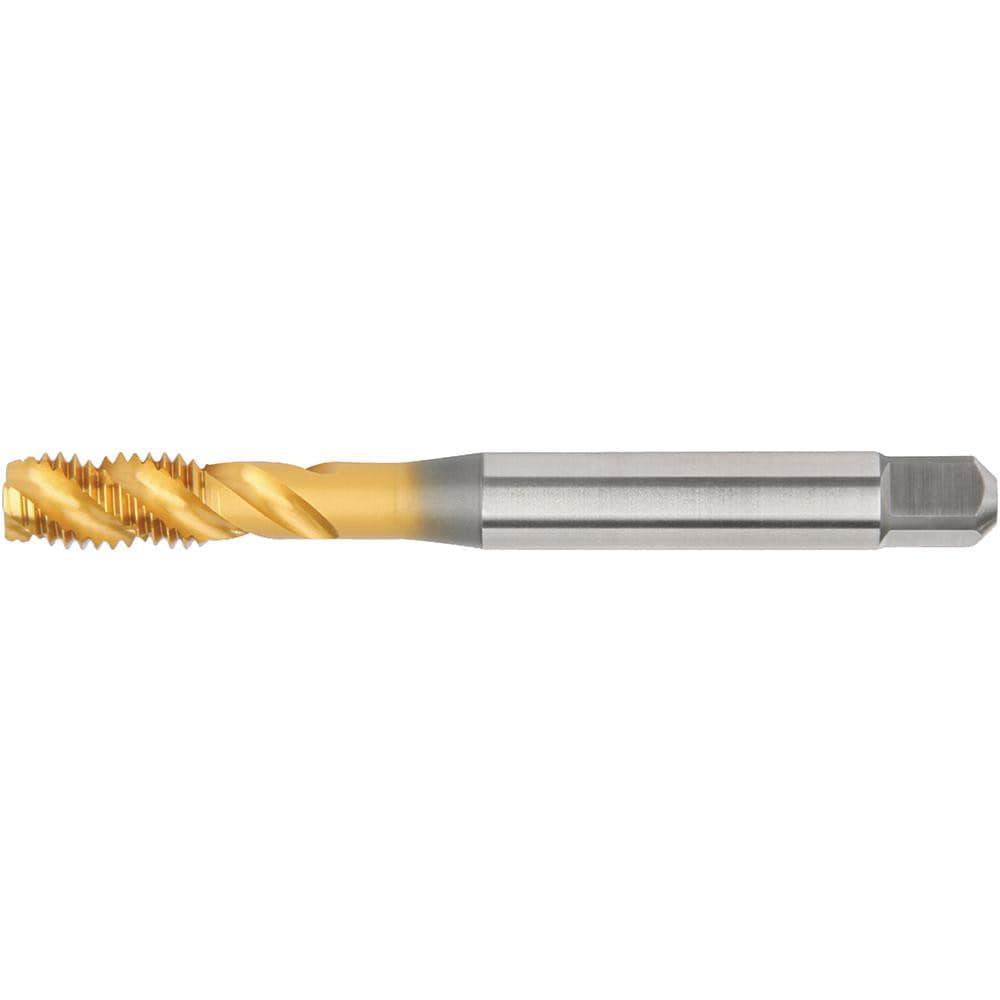

Brand: Widia / Part #: 5387466
Item #: 93325645
Brand: Widia
Model #: 5387466
Product Specifications
| Thread Size (mm) | M12x1.75 |
| Number Of Flutes | 3 |
| Chamfer | Bottoming |
| Thread Limit | 6H |
| Class Of Fit | 6H |
| Coating/Finish | TiCN |
| Threads per Inch | 15 |
| Material | High Speed Steel |
| Coolant Through | No |
| Thread Direction | Right Hand |
| Thread Depth (mm) | 44.00 |
| Thread Pitch (mm) | 1.75 |
| Thread Standard | Metric |
| Material Grade | WP42EG |
| Thread Length (mm) | 21.00 |
| Overall Length (mm) | 110.0000 |
| Shank Diameter (Decimal Inch) | 0.3543 |
| Material Application | Non-Ferrous Metal; Stainless Steel; Cast Iron; Steel |
| Series | VT-SFT |
