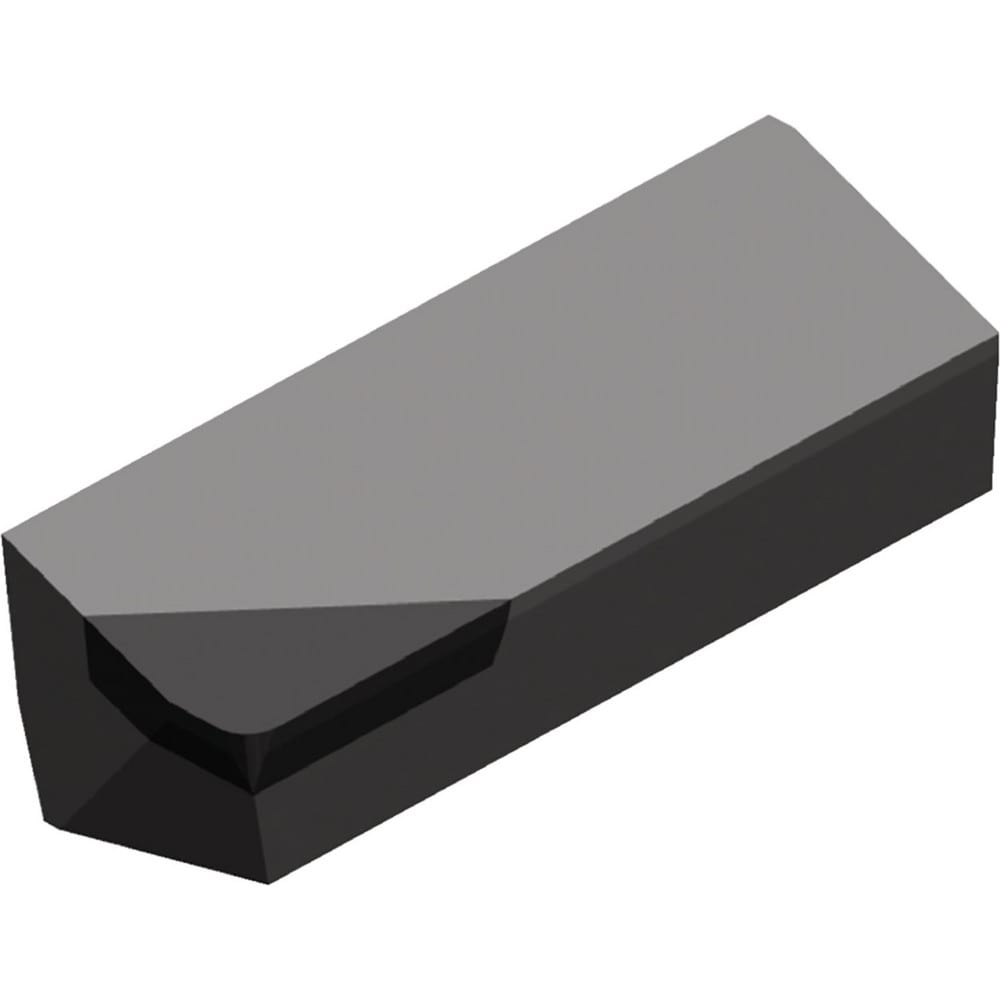

Brand: Widia / Part #: 5358450
Item #: 94091048
Brand: Widia
Model #: 5358450
Product Specifications
| Insert Style | SDR1 |
| Insert Size Code | 0003 |
| Insert Size | 10 |
| Insert Material | Polycrystalline Diamond |
| Width (Inch) | 3/8 |
| Manufacturer Grade | WDN00U |
| Length (Inch) | 7/8 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Corner Radius (Inch) | 1/32 |
| Insert Hand | Right Hand |
| Series | SuperFeed |
| Coating Process | Uncoated |
| Hole Diameter (Decimal Inch) | 0.0000 |
| Maximum Depth of Cut (Decimal Inch) | 0.1110 |
| Number Of Cutting Edges | 1 |
| Insert Shape | Parallelogram |
| Primary Workpiece Material | Non-Ferrous Metal |
| Primary Workpiece Material Code | N |
| Ansi Code | SDR100031E0NW |
| Iso Code | SDR100031E0NW |
| Manufacturers Catalog Number | SDR100031E0NW |
| Cutter Series Compatibility | DOV-LOK INSERT |
| Chip Breaker | None |
| Cutting Direction | Right Hand |
| Material Application | High-Temperature Alloy; Stainless Steel; Steel |
| Shape | Parallelogram |
| Insert Holding Method | Clamp |
| Coating Classification | Uncoated |
| Single or Double Sided Insert | Single |
| Coating/Finish | Uncoated |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.3750 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2510 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.8750 |
