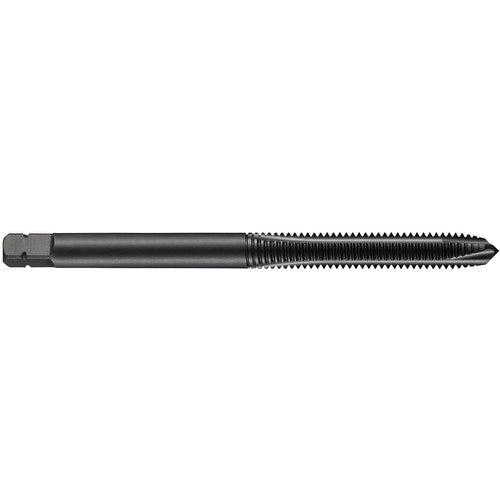

M8x1.25 2 Flute 6H HSS-E M Machine Tap Spiral Point E-code # E006M8
Item #: HP400580516
Brand: Dormer
Model #: 5973782
| Product Specifications | |
|---|---|
| Thread Standard | M |
| Applicable Material | Steel | Cast Iron | Hard Materials |
| Thread Size | M8 × 1.25 |
| Connection Diameter Machine Side (DCONMS) | 0.318″ |
| Thread Diameter Size (TDZ) | M8 |
| Tapping Prehole Diameter (Pre-hole) | H |
| Thread Pitch (TP) | 1.25 mm |
| End Shape | Spiral Point |
| Thread Tolerance Class (TCTR) | 6H |
| Style | Plug |
| Chamfer | 3.5P-5P |
| Cutting Direction (HAND) | Right Hand |
| Coating | Steam Tempered |
| Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 2 |
| Length Group | 2.5xD |
| Cutting Edge Material | HSS-E |
| Measurement Type | Metric |
| Standard | ANSI |
| Series/List # | E006 |
| Tool Type | Machine Tap |
