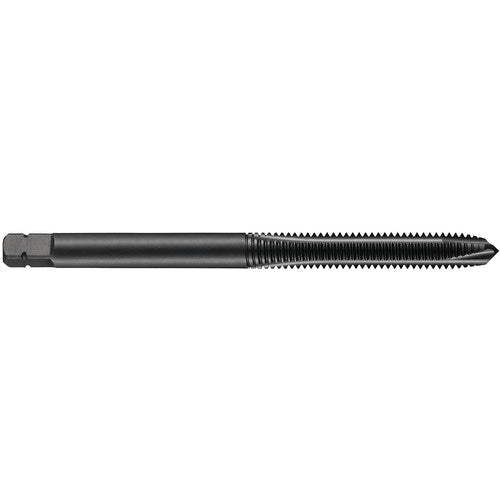

3/8-16 3 Flute 3B HSS-E UNC Machine Tap Spiral Point E-code # E0263/83FL
Item #: HP400581391
Brand: Dormer
Model #: 5974145
| Product Specifications | |
|---|---|
| Thread Standard | UNC |
| Applicable Material | Steel | Cast Iron | Hard Materials |
| Thread Size | 3/8″ - 16 |
| Connection Diameter Machine Side (DCONMS) | 0.381″ |
| Thread Diameter Size (TDZ) | 3/8″ |
| Tapping Prehole Diameter (Pre-hole) | 5/16″ |
| Threads per Inch (TPI) | 16 |
| End Shape | Spiral Point |
| Thread Tolerance Class (TCTR) | 3B |
| Style | Plug |
| Chamfer | 3.5P-5P |
| Cutting Direction (HAND) | Right Hand |
| Coating | Steam Tempered |
| Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 3 |
| Length Group | 2.5xD |
| Cutting Edge Material | HSS-E |
| Measurement Type | Fractional |
| Standard | ANSI |
| Series/List # | E026 |
| Tool Type | Machine Tap |
