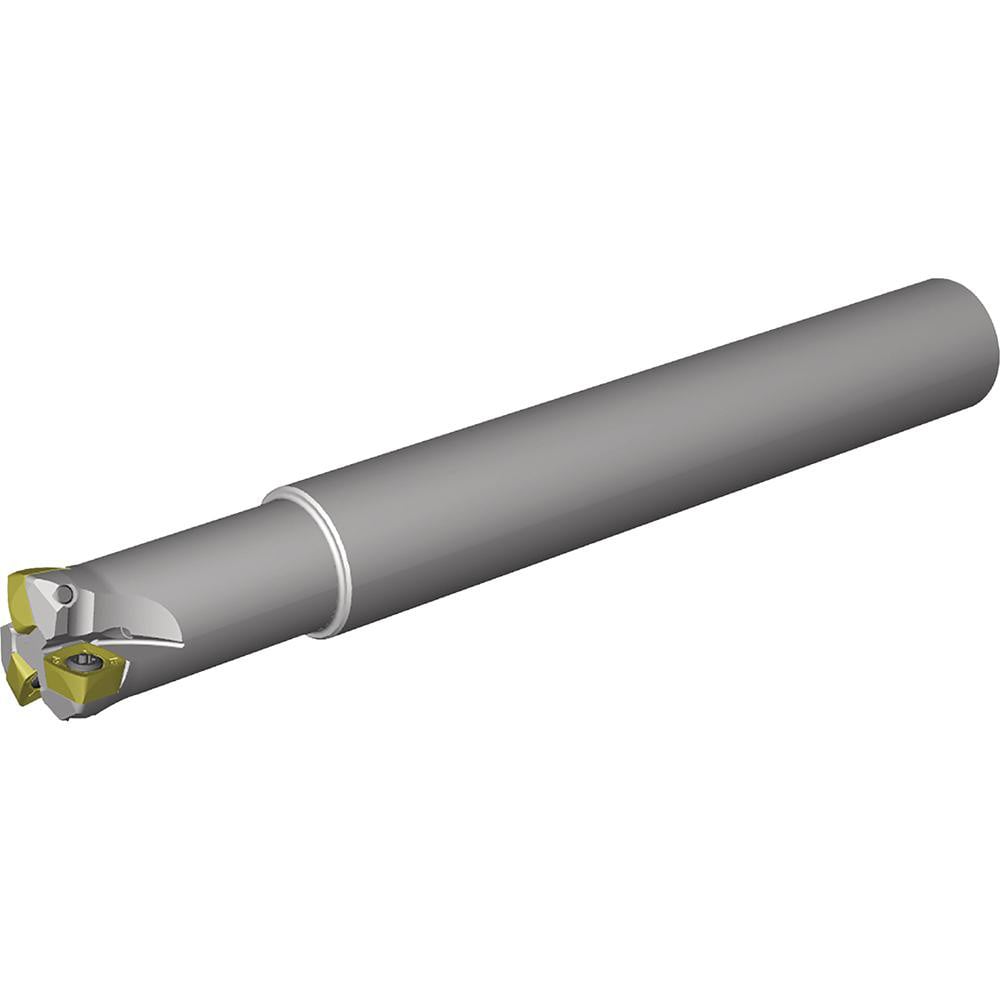

Brand: Widia / Part #: 6597760
Item #: 83162750
Brand: Widia
Model #: 6597760
Product Specifications
| Minimum Cutting Diameter (Decimal Inch) | 0.4618 |
| Maximum Cutting Diameter (Decimal Inch) | 1.0000 |
| Maximum Cutting Diameter (Inch) | 1 |
| Maximum Depth of Cut (Decimal Inch) | 0.0591 |
| Toolholder Style | VXF |
| Shank Type | Cylindrical |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (mm) | 1.00 |
| Maximum Ramping Angle | 2.70 |
| Compatible Insert Style | XDPT |
| Compatible Insert Size Code | 090412 |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 3 |
| Overall Length (Decimal Inch) | 8.0000 |
| Overall Length (Inch) | 8 |
| Overall Length (mm) | 8.00 |
| Series | VXF-09 |
| Flute Type | Straight |
| Maximum RPM | 48000 |
| Head Length (Decimal Inch) | 2.0000 |
| Functional Length (Decimal Inch) | 8.0000 |
| Projection (Decimal Inch) | 8.0000 |
| Projection (Inch) | 8 |
| Tool Application | Plunging; Milling; Ramping |
| Tool Performance | High-Performance |
| Primary Workpiece Material | Universal |
| Number Of Flutes | 3 |
| Coolant Through | Yes |
