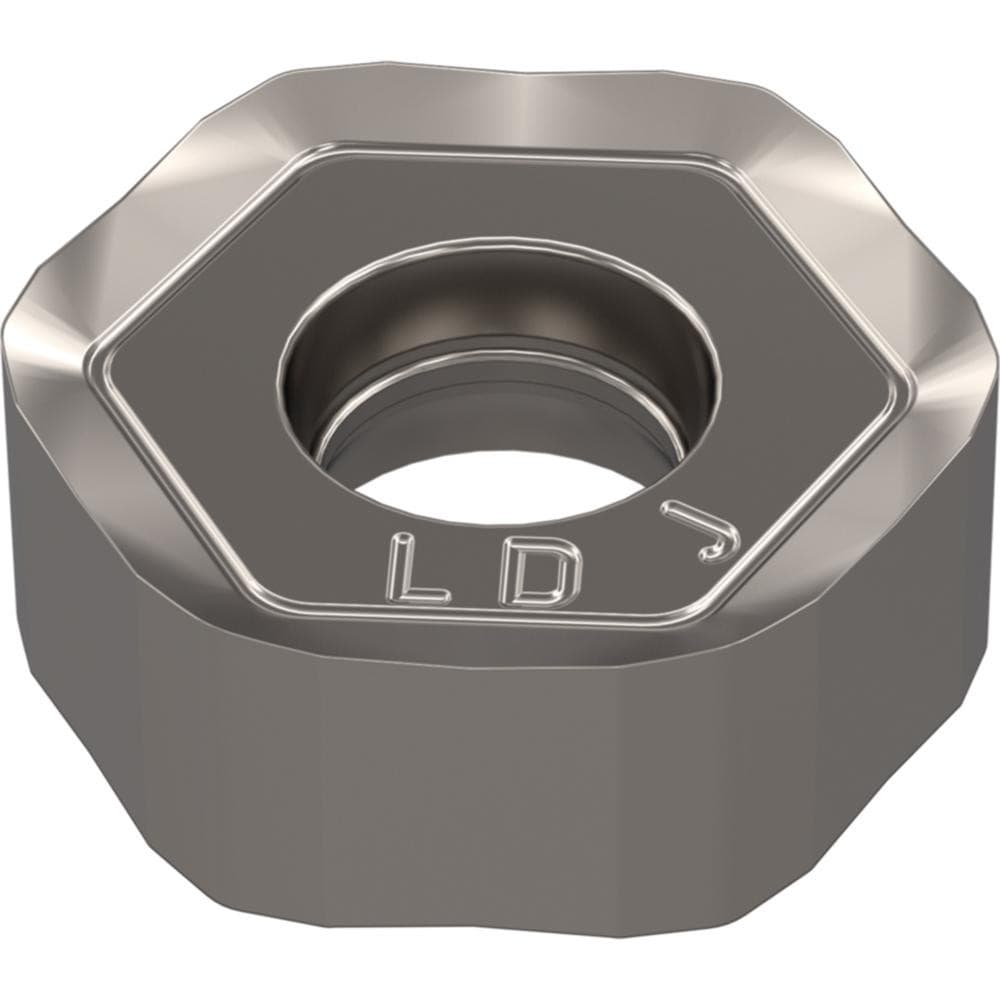

Brand: Widia / Part #: 3954332
Item #: 94095890
Brand: Widia
Model #: 3954332
Product Specifications
| Insert Style | HNGJ |
| Insert Size Code | 0704 |
| Insert Size | 07 |
| Insert Material | Carbide |
| Width (Inch) | 1/2 |
| Manufacturer Grade | THM-U |
| Length (Inch) | 1/2 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Corner Radius (Decimal Inch) | 0.0469 |
| Corner Radius (Inch) | 3/64 |
| Insert Hand | Neutral |
| Relief Angle | 0.000 |
| Series | M1200 |
| Coating Process | Uncoated |
| Hole Diameter (Mm) ( - 0 Decimals) | 5.0000 |
| Hole Diameter (Decimal Inch) | 0.1969 |
| Maximum Depth of Cut (Decimal Inch) | 0.2691 |
| Number Of Cutting Edges | 12 |
| Insert Shape | Hexagon |
| Rake | Negative |
| Secondary Workpiece Material | Non-Ferrous Metal; Cast Iron |
| Secondary Workpiece Material Code | H; K |
| Ansi Code | HNGJ0704ANFNLDJ |
| Iso Code | HNGJ0704ANFNLDJ |
| Manufacturers Catalog Number | HNGJ0704ANFNLDJ |
| Cutter Series Compatibility | M1200 HN0704 IN |
| Chip Breaker | LD |
| Cutting Direction | Neutral |
| Material Application | High-Temperature Alloy; Stainless Steel; Steel |
| Shape | Hexagon |
| Insert Holding Method | Screw |
| Coating Classification | Uncoated |
| Single or Double Sided Insert | Double |
| Coating/Finish | Uncoated |
| Included Angle Degree | 120 |
| Width (Decimal Inch - 4 Decimals) | 0.5000 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1764 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.5000 |
