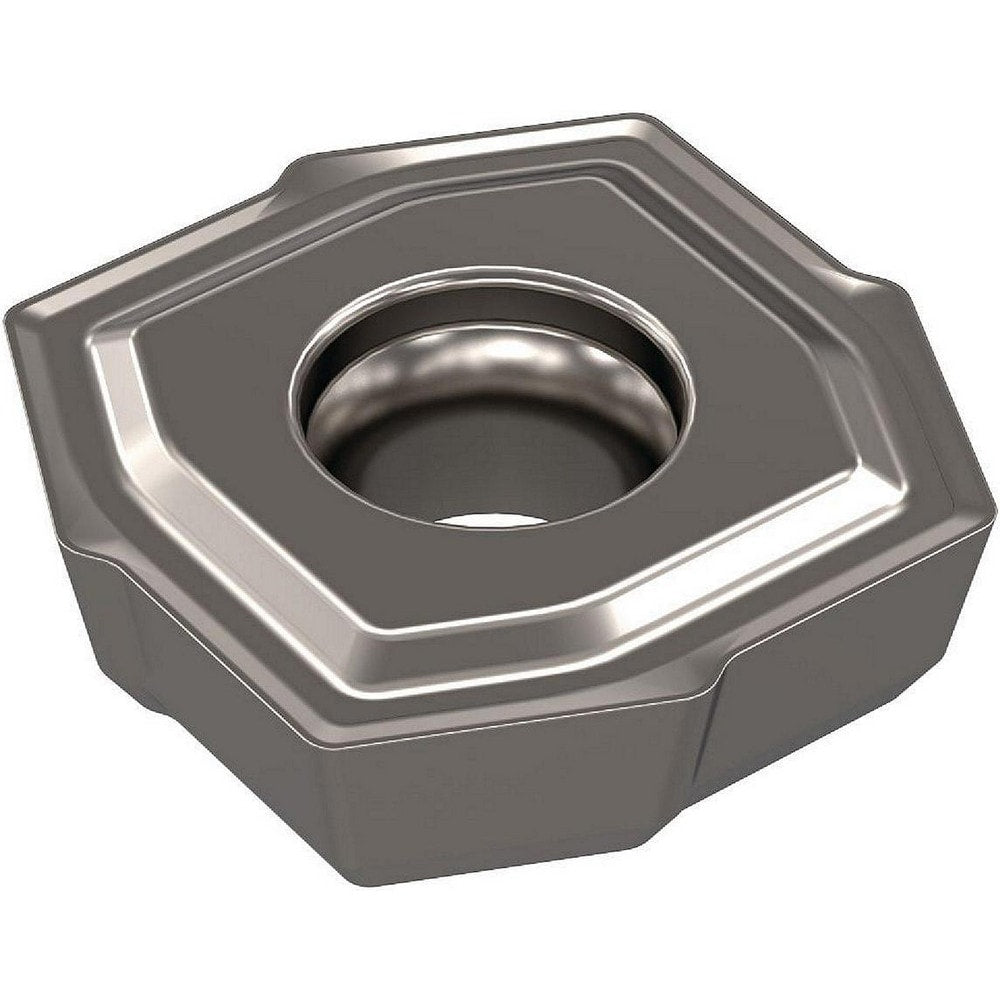

Brand: Widia / Part #: 6407890
Item #: 32899072
Brand: Widia
Model #: 6407890
Product Specifications
| Insert Style | TCF |
| Insert Size Code | 180508 |
| Insert Material | Carbide |
| Manufacturer Grade | WN10PH |
| Inscribed Circle (Inch) | 45/64 |
| Inscribed Circle (Decimal Inch) | 0.7040 |
| Cutting Direction | Neutral |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Chipbreaker | V36 |
| Series | TCF |
| Coating Process | PVD |
| Shape | Irregular |
| Hole Diameter (Decimal Inch) | 0.2362 |
| Number Of Cutting Edges | 4 |
| Relief Angle | 11.000 |
| Rake | Positive |
| Primary Workpiece Material | Non-Ferrous Metal |
| Primary Workpiece Material Code | N |
| Ansi Code | TCF180508GCV36 |
| Iso Code | TCF180508GCV36 |
| Drill Style | TCF |
| Insert Size | 18 |
| Coating Classification | PVD |
| Width (Decimal Inch - 4 Decimals) | 0.5748 |
| Length (Decimal Inch - 4 Decimals) | 0.5748 |
| Included Angle Degree | 90 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2126 |
| Coating/Finish | TiB2 |
