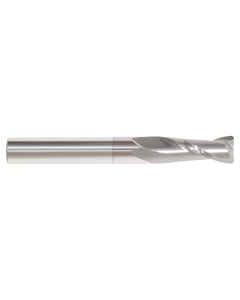

3/16-2FL-SE-REG w/.020R TiCN
Item #: MW21204602438
Brand: Monster Tool Company
Model #: 204-602438
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 3/16″ |
| Application | | Profiling | Plunging | Profile Cutting | Radiusing | Radius Slotting | |
| Connection Diameter Machine Side (DCONMS) | 3/16″ |
| Corner Radius (RE) | 0.02″ |
| Depth of Cut Maximum (APMX) | 5/8″ |
| Grade | C-2 Sub-Micron |
| Overall Length (OAL) | 2″ |
| Length Group | Regular |
| Cutting Edge Material | Solid Tungsten Carbide |
| Decimal Equivalent | 0.1875″ |
| Coating | TiCN |
| Series/List # | 204 |
| Flute Count (NOF) | 2 |
| Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 30 Degrees |
| Single / Double End | Single End |
| End Shape | Corner Radius |
| Center Cutting | Yes |
| Applicable Material | | Stainless Steel | Cast Iron | |
