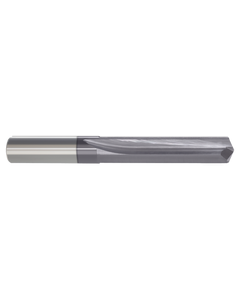

16 CARB ST FL DRILL AlTiN
Item #: MW23470301770B
Brand: Monster Tool Company
Model #: 470-301770B
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | #16 |
| Tool Type | Drill |
| Drill Bit Size / Cutting Diameter (DC) - Letter / Wire Gauge | #16 |
| Grade | C-2 Sub-Micron |
| Length Group | Standard |
| Point Shape | Notched Drill Point |
| Coating | TiAlN |
| Measurement Type | Wire Gauge |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Series/List # | 470 |
| Application | | Drilling | |
| Length Chip Flute (LCF) | 1-1/8″ |
| Connection Diameter Machine Side (DCONMS) | 0.177″ |
| Overall Length (OAL) | 2-3/16″ |
| Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 2 |
| Point Angle (SIG) | 140 Degrees |
| Cutting Direction (HAND) | Right Hand |
| Functional Length (LF) | 1-1/8″ |
| Single / Double End | Single End |
| Cutting Edge Material | Solid Tungsten Carbide |
