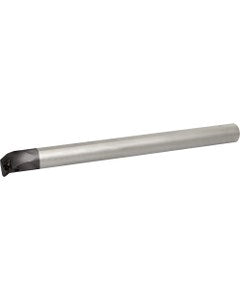

E08QSDUCR2A Right-Hand, Positive Rake, Coolant-Through Boring Bar
Item #: KY96THC89069
Brand: Kyocera Precision Tools
Model #: THC89069
| Product Specifications | |
|---|---|
| Connection Diameter Machine Side (DCONMS) | 1/2″ |
| Cutting Direction (HAND) | Right Hand |
| Functional Length (LF) | 7.1″ |
| Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 7.1″ |
| Rake Angle Axial (GAMP) | 3 Degrees |
| Head Length (LH) | 0.8941″ |
| Rake Angle Radial (GAMF) | -5 Degrees |
| Shank Height (H) | 0.461″ |
| Series/List # | DYNB |
| Shank Length (LS) | 6.2059″ |
| Style | E...SDUC-A |
| Functional Width (WF) | 0.36″ |
| Measurement Type | Inch |
| Master Insert Identification (MIID) | | DCGT215 | DCMX215 | DCMT215 | DCET215 | DCMW215 | |
| Weight of Item (WT) | 0.621 |
| Minimum Bore Diameter (DMIN) | 0.6299″ |
