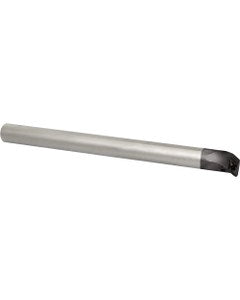

E10NSDQCL0713A Left-Hand, Positive Rake, Coolant-Through Boring Bar
Item #: KY96THC13903
Brand: Kyocera Precision Tools
Model #: THC13903
| Product Specifications | |
|---|---|
| Connection Diameter Machine Side (DCONMS) | 10 mm |
| Cutting Direction (HAND) | Left Hand |
| Functional Length (LF) | 160 mm |
| Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 160 mm |
| Rake Angle Axial (GAMP) | 0 Degrees |
| Head Length (LH) | 20 mm |
| Rake Angle Radial (GAMF) | -10 Degrees |
| Shank Height (H) | 9 mm |
| Series/List # | DYNB |
| Shank Length (LS) | 140 mm |
| Style | E...SDQC-A |
| Functional Width (WF) | 7.5 mm |
| Measurement Type | Metric |
| Master Insert Identification (MIID) | | DCGT215 | DCMX215 | DCMT215 | DCET215 | DCMW215 | |
| Weight of Item (WT) | 0.3982 |
| Minimum Bore Diameter (DMIN) | 13 mm |
