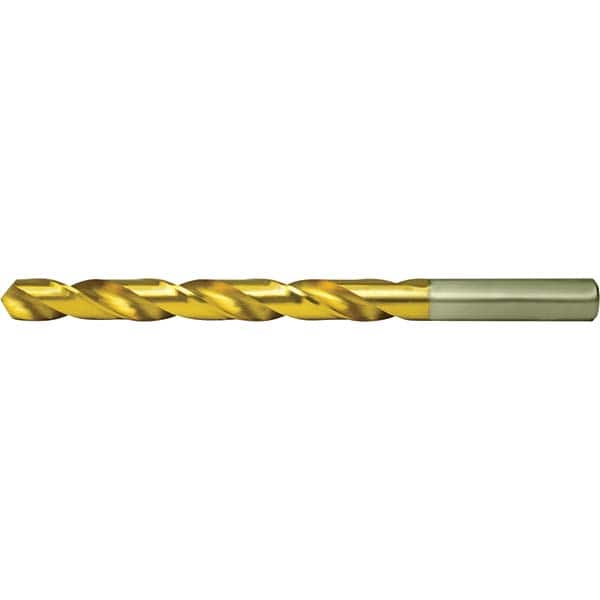

Cle-Line - Jobber Length Drill Bits Drill Bit Size (Letter): C Drill Bit Size (Decimal Inch): 0.2400
Item #: 14285449
Brand: Cle-Line
Model #: C19192
Features and Benefits
High speed steel (HSS) provides good wear resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
Titanium Nitride (TiN) is a multi-purpose coating which increases chip flow in softer materials. The heat and hardness resistance allows the tool to run at higher speeds than uncoated tools.
Spiral flutes are constructed with a higher flute angle to remove chips more easily.
Product Specifications
Jobber Length Drill Bits; Drill Bit Size (Letter): C ; Drill Bit Size (Decimal Inch): 0.2400 ; Drill Point Angle: 118 ; Drill Bit Material: High Speed Steel ; Drill Bit Finish/Coating: TiN ; Flute Type: Spiral
| Drill Bit Size (Letter) | C |
| Drill Bit Size (Decimal Inch) | 0.2400 |
| Drill Point Angle | 118 |
| Drill Bit Material | High Speed Steel |
| Drill Bit Finish/Coating | TiN |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Coolant Through | No |
| Flute Length (Decimal Inch) | 2.7500 |
| Overall Length (Decimal Inch) | 4.00000 |
| Flute Length x Diameter Ratio | 3xD |
| Point Type | Radial |
| Shank Diameter (Decimal Inch) | 0.2700 |
| Maximum Drilling Depth (Decimal Inch) | 0.6100 |
| Spiral Type | Regular Spiral |
| Shank Length (Inch) | 1-1/4 |
| Specification Designation | ANSI |
| Web Configuration | Tapered |
| Drill Bit Diameter Tolerance (Decimal Inch) | +0.0000 to -0.0007 |
| Number of Flutes | 2 |
| PSC Code | 5133 |
| Drill Bit Grade | General Purpose |
| Material Grade | HSS |
| Series/List | 1898T |
