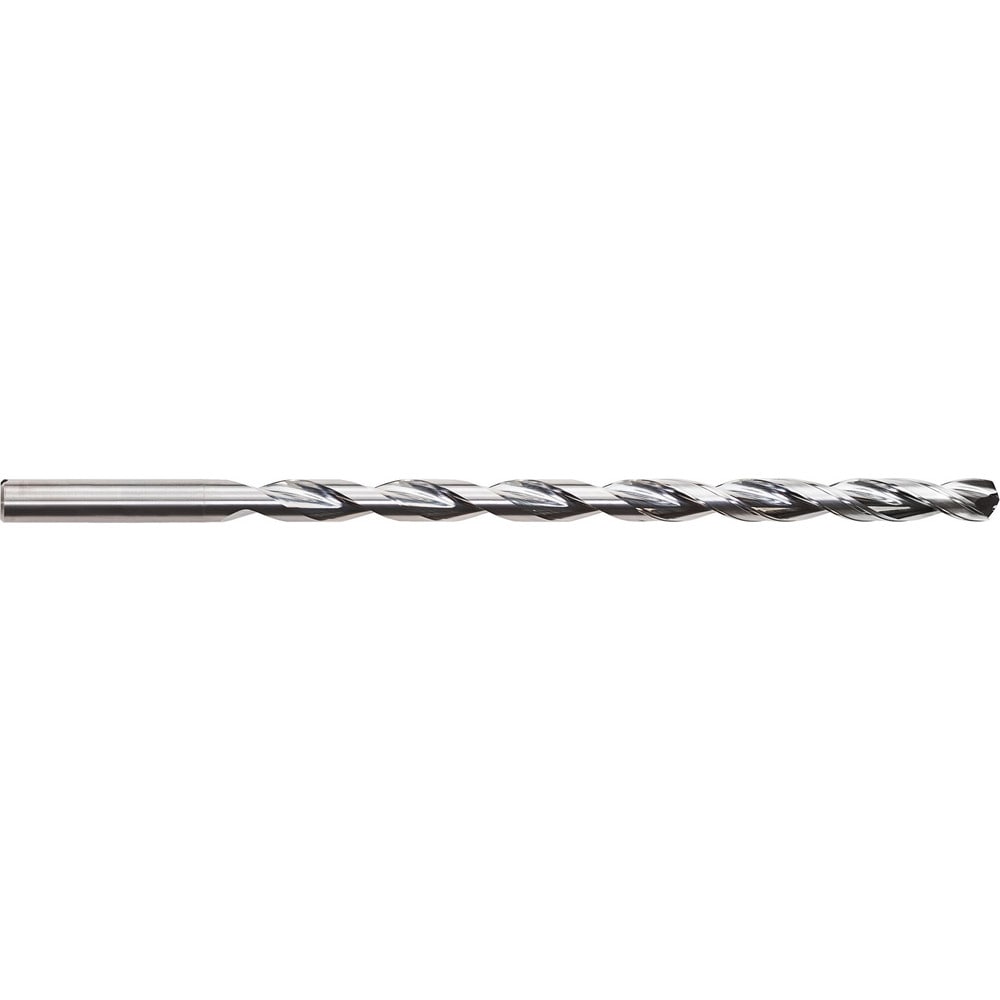

Brand: Guhring / Part #: 9065150078000
Item #: 98774755
Brand: Guhring
Model #: 9065150078000
Product Specifications
| Drill Bit Size (mm) | 7.80 |
| Overall Length (mm) | 183.0000 |
| Flute Length (mm) | 143.00 |
| Tool Material | Solid Carbide |
| Coating/Finish | Uncoated |
| Drill Point Angle | 135 |
| Shank Type | Cylindrical |
| Coolant Through | Yes |
| Flute Type | Spiral |
| Series | 6515 |
| Point Type | RT100 T |
| Cutting Direction | Right Hand |
| Tool Application | Deep Hole Drilling |
| Spiral Type | Regular Spiral |
| Drill Bit Diameter Tolerance | H7 |
| Number Of Flutes | 2 |
| Primary Workpiece Material | Aluminum |
| Drill Bit Size (Decimal Inch) | 0.3071 |
| Shank Diameter (mm) | 8.0000 |
| Shank Length (mm) | 36.000 |
| Flute By Diameter Ratio | 15xD |
| Maximum Drilling Depth (mm) | 134.00 |
