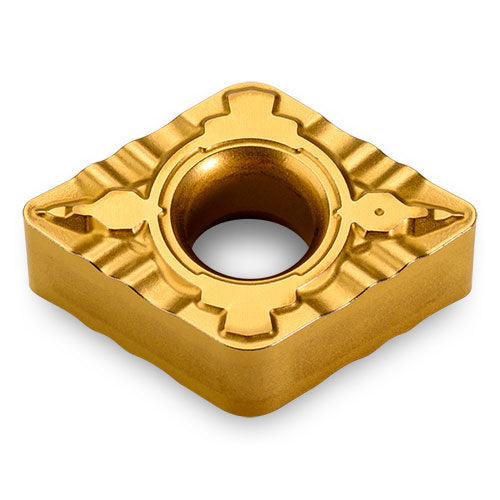

XNMG3.53.532MLP TT8115B
Item #: IC066173412
Brand: Ingersoll
Model #: 6173412
| Product Specifications | |
|---|---|
| Insert Style | XNMG |
| Depth of Cut Maximum (APMX) | 0.138″ |
| Corner Radius (RE) | 0.047″ |
| Min. Turning Feed (ft(min)) | 0.006″ |
| Insert Size | 3.53.532 |
| Max. Turning Feed (ft(max)) | 0.02″ |
| Cutting Edge Length (L) | 0.465″ |
| Number of Cutting Edges | 4 |
| Insert Thickness (S) | 0.219″ |
| Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 0.437″ |
| Measurement Type | Inch |
| Insert Included Angle (EPSR) | 70 Degrees |
| Body Material | Carbide |
| Min D.O.C. | 0.024″ |
