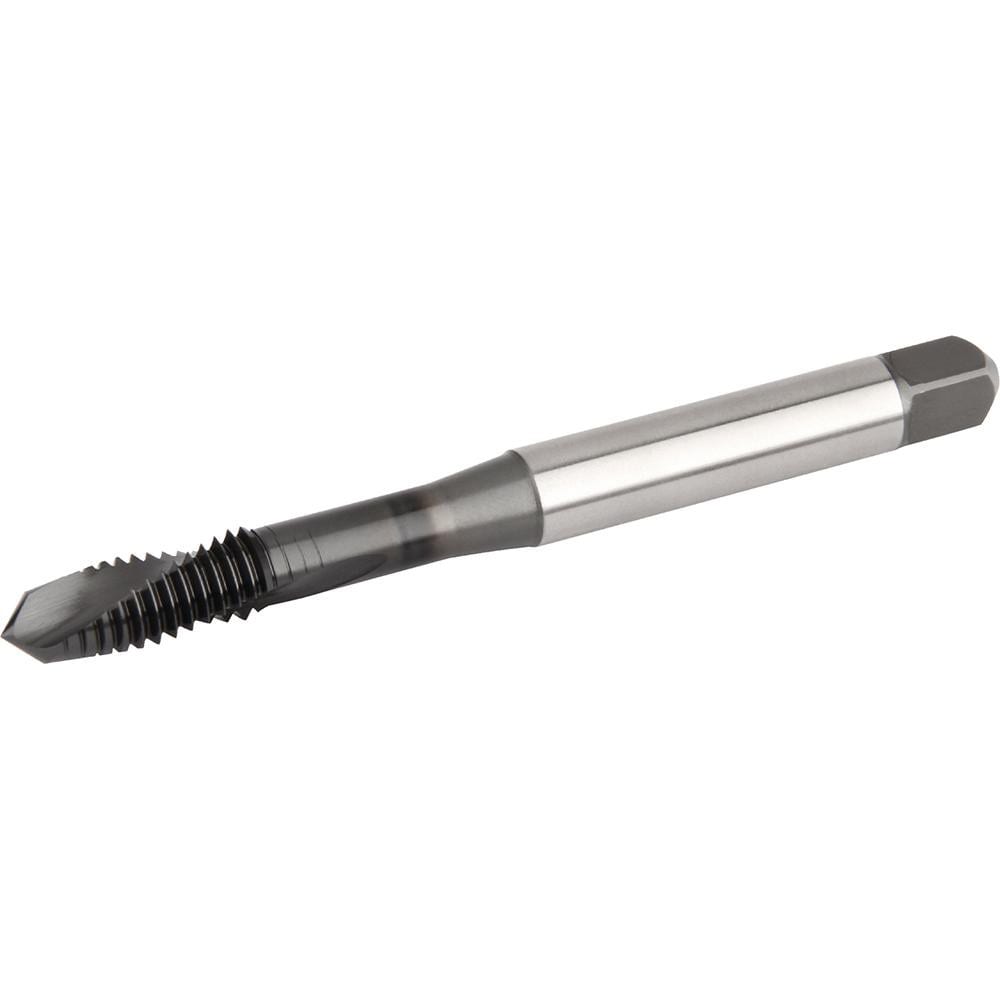

Brand: Widia / Part #: 5690898
Item #: 97527220
Brand: Widia
Model #: 5690898
Product Specifications
| Thread Size (Inch) | #8-32 |
| Chamfer | Plug |
| Thread Limit | H3 |
| Class Of Fit | 2B |
| Number Of Flutes | 2 |
| Material | High Speed Steel |
| Threads per Inch | 32 |
| Thread Direction | Right Hand |
| Flute Direction | Left Hand |
| Coating/Finish | C; CrC; TiN |
| Coolant Through | No |
| Thread Length (Decimal Inch) | 0.4300 |
| Overall Length (Decimal Inch) | 2.4800 |
| Thread Depth (Decimal Inch) | 0.8300 |
| Thread Pitch (Decimal Inch) | 0.0313 |
| Thread Standard | UNC |
| Material Grade | WN44EG |
| Shank Diameter (Decimal Inch) | 0.1680 |
| Square Size (Decimal Inch) | 0.1290 |
| Material Application | Non-Ferrous Metal |
| Series | GT72 |
