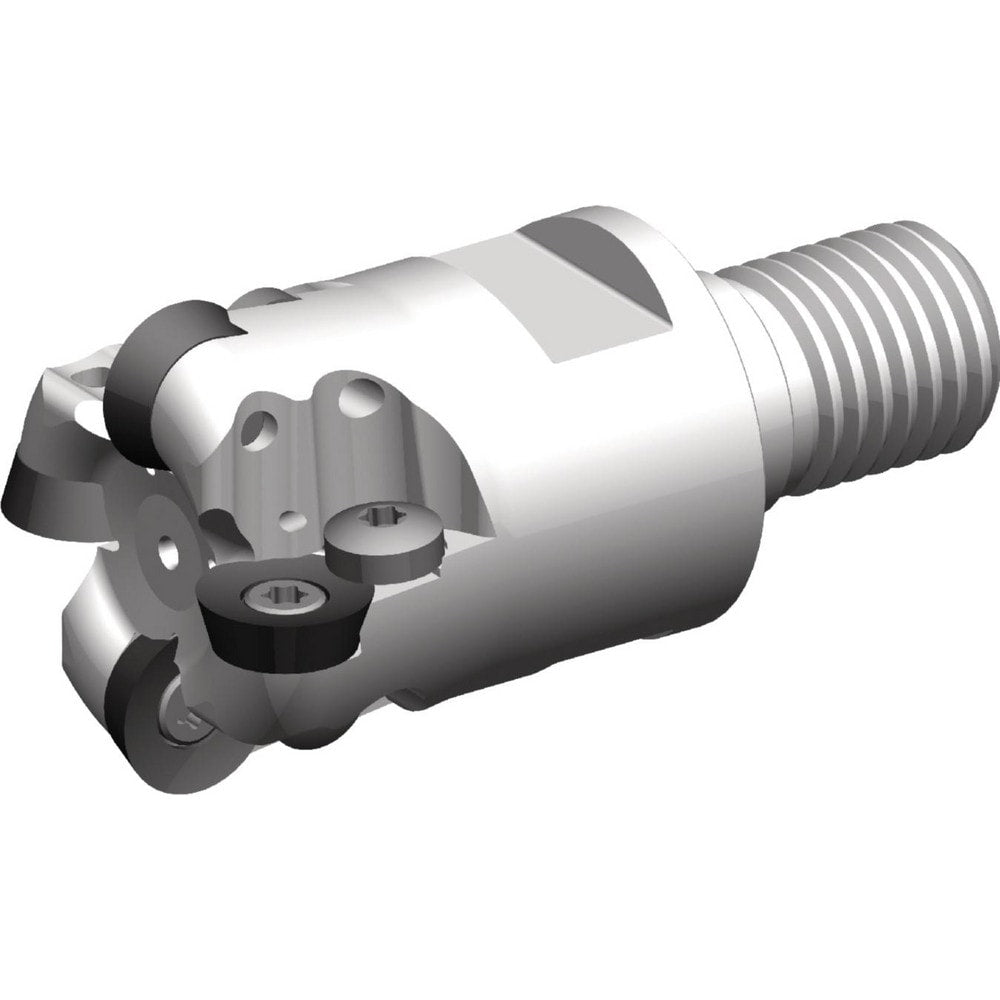

Brand: Widia / Part #: 3930956
Item #: 99735490
Brand: Widia
Model #: 3930956
Product Specifications
| Minimum Cutting Diameter (mm) | 23.00 |
| Maximum Cutting Diameter (mm) | 35.00 |
| Maximum Depth of Cut (mm) | 6.00 |
| Toolholder Style | M170 |
| Shank Type | Modular Connection |
| Shank Diameter | 1.1417 |
| Maximum Ramping Angle | 10.5 |
| Compatible Insert Style | RD.X |
| Insert Holding Method | Screw |
| Compatible Insert Size Code | 12T3.. |
| Number Of Cutter Inserts | 4 |
| Overall Length (mm) | 67.5000 |
| Series | M170 |
| Flute Type | Straight |
| Maximum Rpm | 9900.000 |
| Shank Length (mm) | 24.500 |
| Functional Length (mm) | 43.00 |
| Head Length (mm) | 43.00 |
| Insert Diameter (mm) | 12.000 |
| Tool Application | Pocketing; Milling; Ramping; Slotting |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Hard Material; Stainless Steel; Cast Iron; Super-alloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; H; K; M |
| Number Of Flutes | 4 |
| Coolant Through | Yes |
