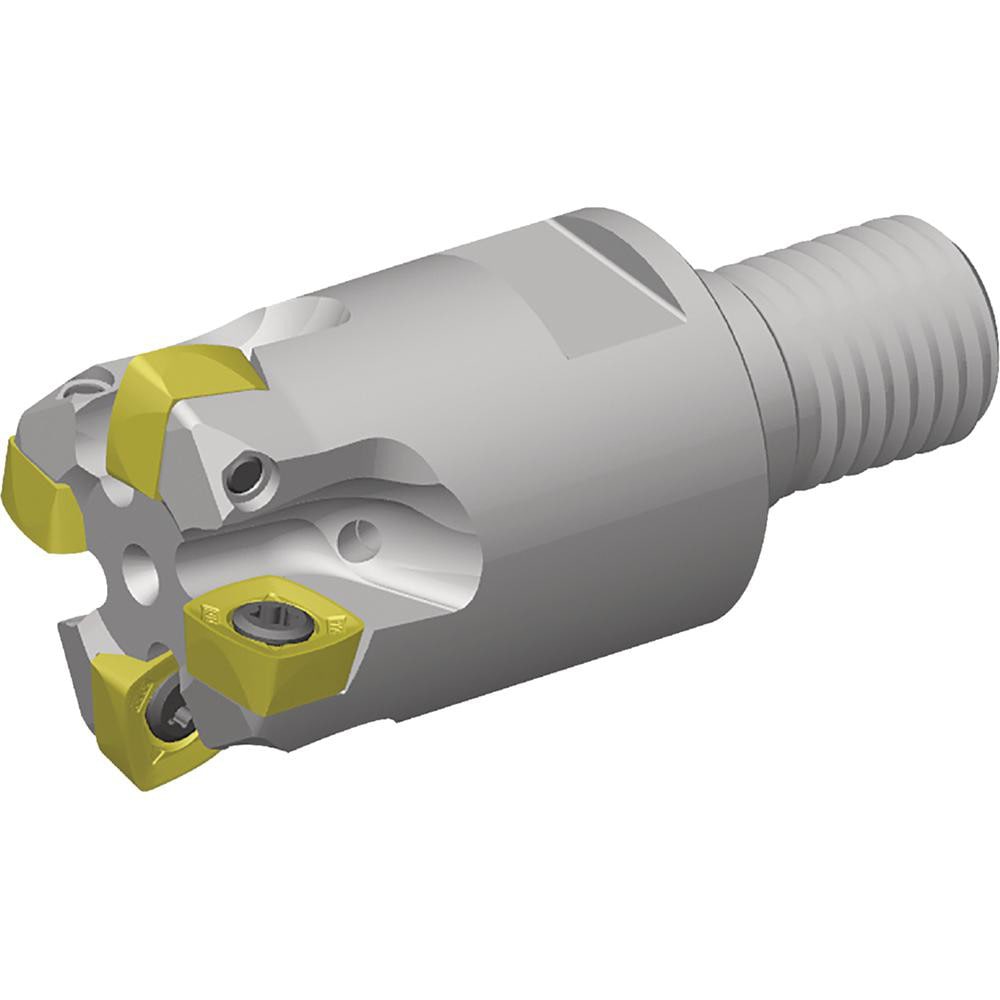

Brand: Widia / Part #: 6597733
Item #: 83110866
Brand: Widia
Model #: 6597733
Product Specifications
| Minimum Cutting Diameter (mm) | 18.30 |
| Maximum Cutting Diameter (mm) | 32.00 |
| Maximum Depth of Cut (mm) | 1.50 |
| Toolholder Style | VXF |
| Shank Type | Modular Connection |
| Shank Diameter (Decimal Inch) | 1.1417 |
| Shank Diameter (mm) | 1.14 |
| Maximum Ramping Angle | 1.50 |
| Compatible Insert Style | XDPT |
| Compatible Insert Size Code | 090412 |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 4 |
| Overall Length (Decimal Inch) | 67.5000 |
| Overall Length (Inch) | 67-1/2 |
| Overall Length (mm) | 67.50 |
| Series | VXF-09 |
| Flute Type | Straight |
| Maximum RPM | 40500 |
| Modular Connection Size | M16 |
| Head Length (mm) | 43.00 |
| Functional Length (mm) | 43.00 |
| Projection (mm) | 43.00 |
| Tool Application | Plunging; Milling; Ramping |
| Tool Performance | High-Performance |
| Primary Workpiece Material | Universal |
| Number Of Flutes | 4 |
| Coolant Through | Yes |
