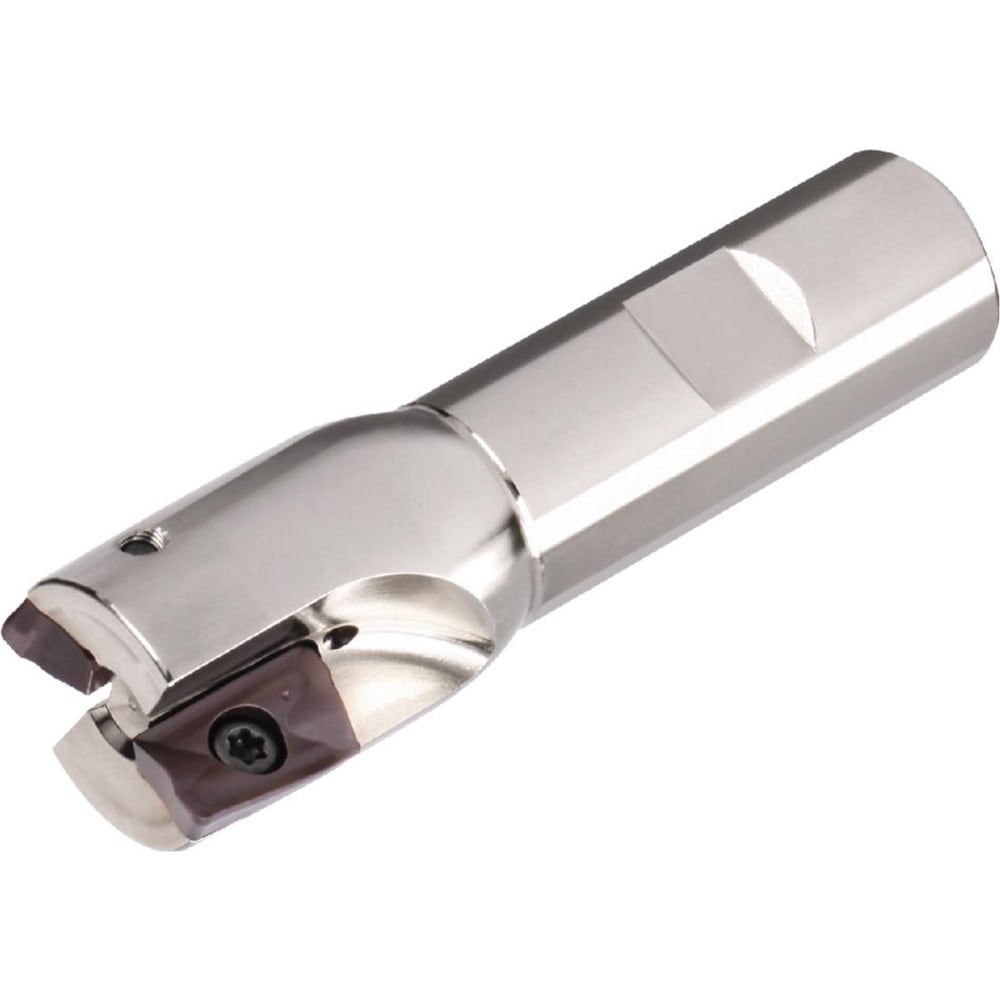

Brand: Widia / Part #: 3577774
Item #: 16953036
Brand: Widia
Model #: 3577774
Product Specifications
| Minimum Cutting Diameter (Decimal Inch) | 1.2500 |
| Minimum Cutting Diameter (Inch) | 1-1/4 |
| Maximum Cutting Diameter (Decimal Inch) | 1.2500 |
| Maximum Cutting Diameter (Inch) | 1-1/4 |
| Maximum Depth of Cut (Decimal Inch) | 0.6181 |
| Cutter Style | M680 |
| Shank Type | Weldon Flat |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Shank Diameter (Inch) | 1 |
| Maximum Ramping Angle | 5 ? |
| Insert Holding Method | Screw |
| Shank Taper Size | None |
| Overall Length (Decimal Inch) | 4.0000 |
| Tool Material | Steel |
| Series | M6800LX |
| Flute Type | Spiral |
| Lead Angle | 90 |
| Shank Length (Inch) | 2-3/32 |
| Shank Length (Decimal Inch) | 2.4055 |
| Head Length (Inch) | 1-19/32 |
| Head Length (Decimal Inch) | 1.5945 |
| Maximum RPM | 30000.000 |
| Tool Application | Pocketing; Milling; Ramping; Slotting |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| End Mill Type | Shoulder Square End Mill |
| Rake | Negative (Radial); Positive (Axial) |
| Complete Insert Compatibility | BDMT1704.. |
| Insert Compatibility | BDMT1704.. |
| Hand of Holder | Right Hand |
| Rake Angle | -7.00 ? (Radial);17.00 ? (Axial) |
| Multi-Use Tool | Yes |
| ISO Number | 15396481000 |
| Manufacturers Catalog Number | 15396481000 |
| Number Of Flutes | 3 |
| Usable Length (Decimal Inch) | 1.5945 |
| Number Of Cutter Inserts | 3 |
| Coolant Through | Yes |
