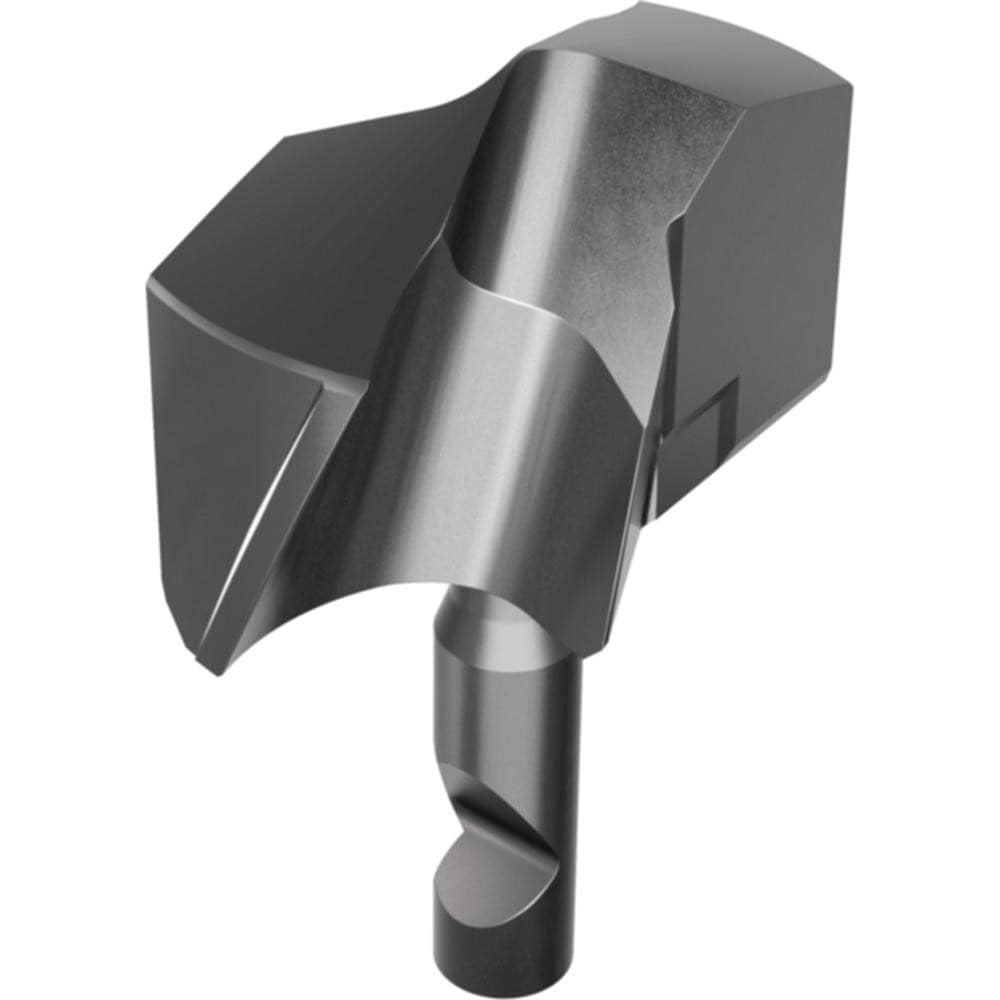

Brand: Widia / Part #: 6568991
Item #: 02328920
Brand: Widia
Model #: 6568991
Product Specifications
| Maximum Drill Diameter (Decimal Inch) | 0.9375 |
| Diameter (Decimal Inch) | 0.9375 |
| Point Angle | 140.00 |
| Diameter (Inch) | 15/16 |
| Tip Material | Solid Carbide |
| Manufacturer Grade | WM15PD |
| Material Grade | 10% Cobalt |
| Cutting Direction | Right Hand |
| Series | TDMX Drill |
| Coating Process | PVD |
| Insert Geometry | MS |
| Insert Seat Size | H |
| Primary Workpiece Material | Hi-Temp Alloys; Stainless Steel |
| Primary Workpiece Material Code | S; M |
| Secondary Workpiece Material | Non-Ferrous Metal; Cast Iron |
| Secondary Workpiece Material Code | K; N |
| Height (Decimal Inch) | 1.248000 |
| Overall Length/Projection (Decimal Inch) | 1.2480 |
| Minimum Cutting Diameter (Decimal Inch) | 0.9375 |
| Head Length (Decimal Inch) | 1.2480 |
| Drill Point Angle | 140 |
| Insert Holding Method | Screw |
| Minimum Cutting Diameter (Inch) | 15/16 |
| ISO Number | TDMX23813MSM |
| Coolant Through | No |
| Cutting Diameter (Decimal Inch) | 0.9375 |
| Cutting Diameter (Inch) | 15/16 |
| Coating Classification | PVD |
| Applications | Drilling |
| Coating/Finish | AlTiN |
| Included Angle Degree | 140 |
| Number Of Flutes | 2 |
