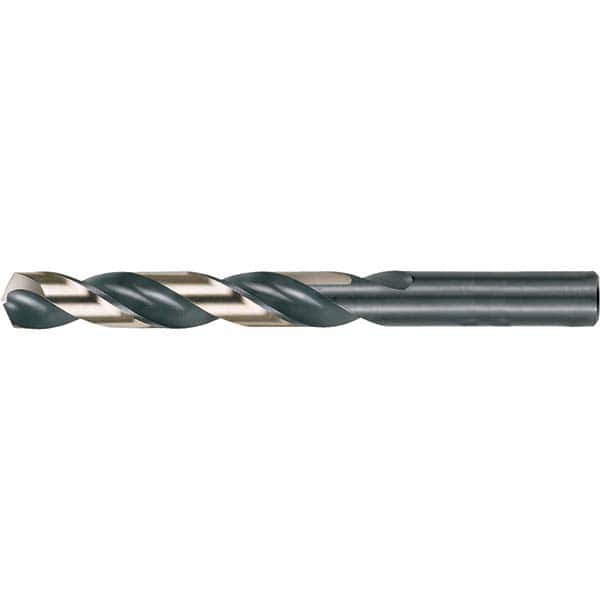

Cle-Line - Jobber Length Drill Bits Drill Bit Size (Letter): N Drill Bit Size (Decimal Inch): 0.3000
Item #: 14284145
Brand: Cle-Line
Model #: C24721
Features and Benefits
Cobalt is harder than high speed steel and provides better wear resistance. It is commonly used on high tensile alloys.
Steam oxide prevents chip building, galling and welding on the workpiece. It is commonly used on low carbons, stainless steel and ferrous metals.
Spiral flutes are constructed with a higher flute angle to remove chips more easily.
Product Specifications
Jobber Length Drill Bits; Drill Bit Size (Letter): N ; Drill Bit Size (Decimal Inch): 0.3000 ; Drill Point Angle: 135 ; Drill Bit Material: Cobalt ; Drill Bit Finish/Coating: Steam Oxide ; Flute Type: Spiral
| Drill Bit Size (Letter) | N |
| Drill Bit Size (Decimal Inch) | 0.3000 |
| Drill Point Angle | 135 |
| Drill Bit Material | Cobalt |
| Drill Bit Finish/Coating | Steam Oxide |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Coolant Through | No |
| Flute Length (Decimal Inch) | 3.0600 |
| Overall Length (Decimal Inch) | 4.38000 |
| Flute Length x Diameter Ratio | 3xD |
| Point Type | Split Point |
| Shank Diameter (Decimal Inch) | 0.3000 |
| Shank Size (Inch) | 0.302 |
| Maximum Drilling Depth (Decimal Inch) | 0.7600 |
| Spiral Type | Regular Spiral |
| Shank Length (Decimal Inch) | 1.3100 |
| Specification Designation | ANSI |
| Web Configuration | Tapered |
| Drill Bit Diameter Tolerance (Decimal Inch) | +0.0000 to -0.0010 |
| Number of Flutes | 2 |
| PSC Code | 5133 |
| Drill Bit Grade | Heavy Duty |
| Material Grade | M35 |
| Series/List | 1802 |
