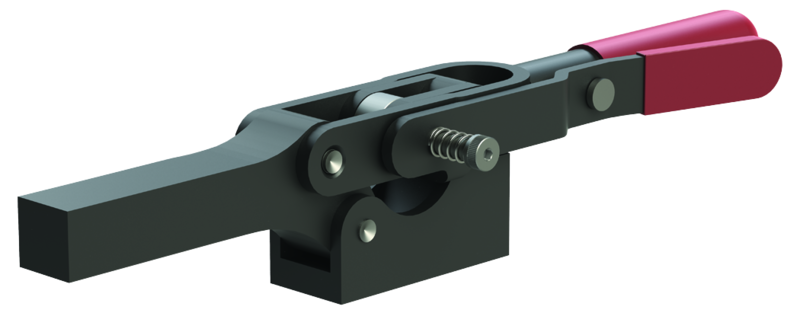

#5305B - Horizontal Hold Down Clamp

Item #: MA455305B
Manufacturer: De-Sta-Co
Mfg #: 97973

Technical Specifications:
*Bar Opening: 90 *Bar Style: Solid *Base Length: 1.88 *Base Type: Solid *Base Width: .79 *Brand Name: De-Sta-Co *Clamp Arm Length: 2.12 *Degree of Handle Movement: 69 *Degree Bar Opens: 90 *Distance From Base to Clamp Bar: .81 *Distance From Surface to Clamp Point: .81 *Height Under Clamp Arm: .81 *Holding Capacity: 600 *Model No.: 5305B *Overall Height: 1.20 *Overall Length: 8.36 *Overall Width: .79 *Toggle Lock Plus Lever: N *Weight: .82 lbs

Description:
*Horizontal Hold Down Clamp Solid Base Type *Solid clamping arm may be modified to suit requirements *Hardened steel pivot pins and bushings provide long life *Black oxide finish

Shipping Info:
*Actual Weight - .8000
