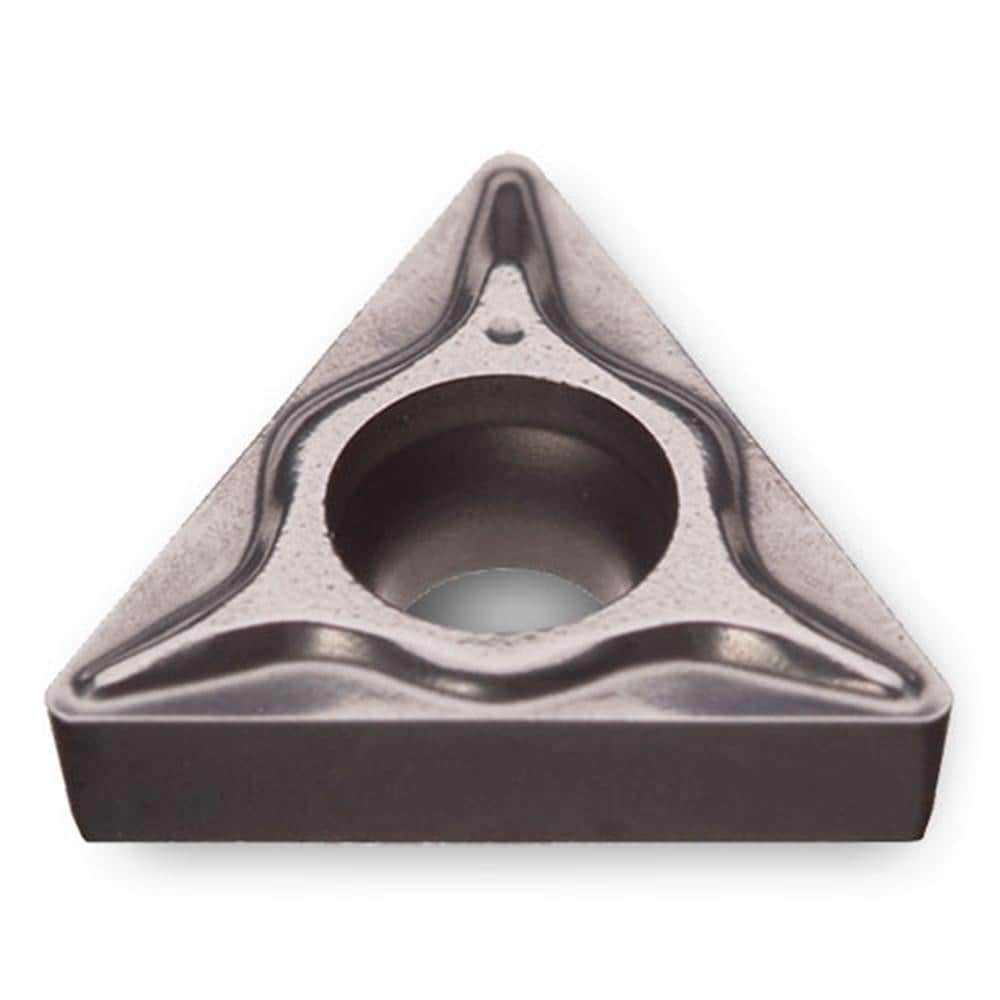

Brand: Ingersoll Cutting Tools / Part #: 5521880
Item #: 94945557
Brand: Ingersoll Cutting Tools
Model #: 5521880
Product Specifications
| Insert Style | TCGT |
| Insert Shape Code | T |
| Insert Size Code | 21.50.5 |
| Insert Shape | Triangle |
| Coating/Finish | TiCN |
| Manufacturer Grade | TT9020 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Insert Material | Solid Carbide |
| Hole Diameter (Decimal Inch) | 0.1100 |
| Maximum Depth of Cut (Decimal Inch) | 0.1000 |
| Inscribed Circle (Inch) | 1/4 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.0940 |
| Clearance Code | C |
| Tolerance Code | G |
| Included Angle | 60.0 |
| Relief Angle | 7 |
| Series | TCGT |
| Coating Process | PVD |
| Rake | Positive |
| Wiper Edge | No |
| Insert Length (Decimal Inch) | 0.4330 |
| Number Of Cutting Edges | 3 |
| Primary Workpiece Material | Stainless Steel; Steel |
| Primary Workpiece Material Code | P; M |
| Ansi Code | TCGT21.50.5SATT9020 |
| Iso Code | TCGT110202SA TT9020 |
| Chip Breaker | SA |
