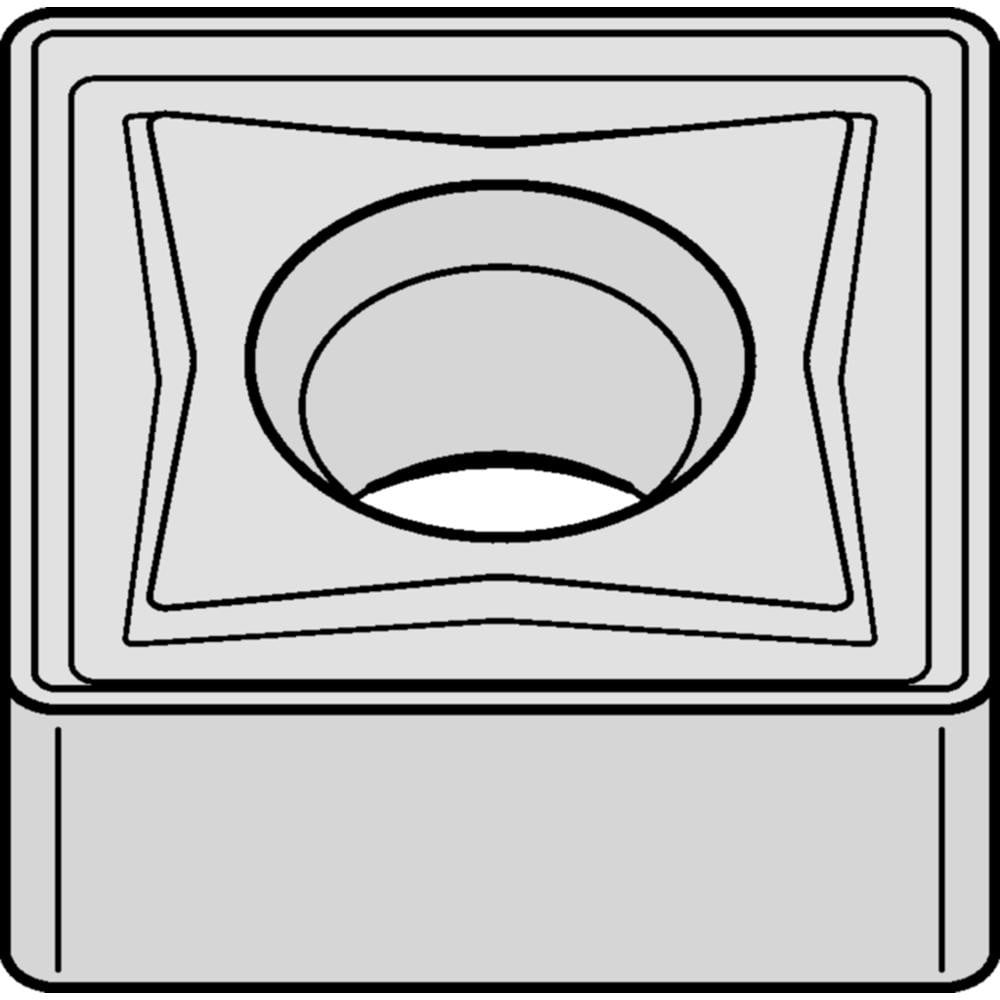

Brand: Widia / Part #: 4166509
Item #: 94105640
Brand: Widia
Model #: 4166509
Product Specifications
| Insert Style | SNMG |
| Insert Shape Code | S |
| Insert Size Code | 5437 |
| Insert Shape | Square |
| Coating/Finish | TiCN; TiN; Al2O3 |
| Manufacturer Grade | TN20P |
| Corner Radius (Decimal Inch) | 0.0472 |
| Insert Material | Carbide |
| Hole Diameter (Decimal Inch) | 0.2500 |
| Maximum Depth of Cut (Decimal Inch) | 0.3125 |
| Inscribed Circle (Decimal Inch) | 0.6250 |
| Insert Holding Method | Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.2500 |
| Clearance Code | N |
| Tolerance Code | M |
| Included Angle | 90.00 |
| Relief Angle | 0.000 |
| Series | SNMG |
| Coating Process | MTCVD |
| Rake | Negative |
| Wiper Edge | No |
| Insert Length (Decimal Inch) | 0.6250 |
| Number Of Cutting Edges | 8 |
| Secondary Workpiece Material | Cast Iron; Steel |
| Secondary Workpiece Material Code | P; K |
| Ansi Code | SNMG5437N |
| Iso Code | SNMG1506127N |
| Manufacturers Catalog Number | SNMG5437N |
| Cutting Direction | Neutral |
| Coating Classification | Multi-Layered CVD |
| Chip Breaker | 7N |
| Style | SNMG |
| Width (Decimal Inch - 4 Decimals) | 0.6250 |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | External Turning; Internal Turning |
