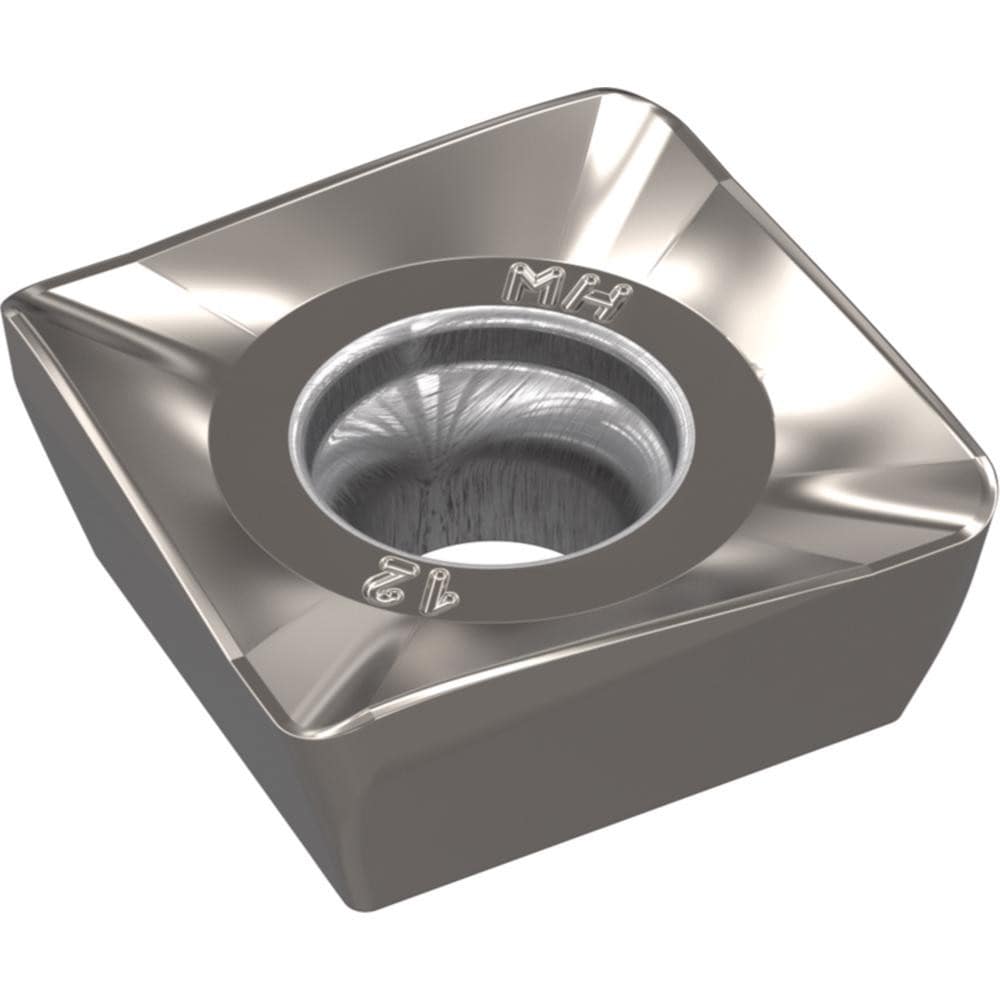

Brand: Widia / Part #: 3950614
Item #: 94112588
Brand: Widia
Model #: 3950614
Product Specifications
| Insert Style | SDMX |
| Insert Size Code | 1204 |
| Insert Size | 43 |
| Insert Material | Carbide |
| Width (Inch) | 1/2 |
| Manufacturer Grade | TN6520 |
| Length (Inch) | 1/2 |
| Thickness (Inch) | 3/16 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Corner Radius (Decimal Inch) | 0.0469 |
| Corner Radius (Inch) | 3/64 |
| Insert Hand | Right Hand |
| Relief Angle | 15.000 |
| Series | M690 |
| Coating Process | PVD |
| Hole Diameter (Decimal Inch) | 0.1730 |
| Maximum Depth of Cut (Decimal Inch) | 0.5000 |
| Number Of Cutting Edges | 4 |
| Insert Shape | Square |
| Rake | Positive |
| Primary Workpiece Material | Cast Iron |
| Primary Workpiece Material Code | K |
| Ansi Code | SDMX433RMH |
| Iso Code | SDMX120412RMH |
| Manufacturers Catalog Number | SDMX433RMH |
| Cutter Series Compatibility | M690 SD1204 IN SDMX |
| Chip Breaker | MH |
| Cutting Direction | Right Hand |
| Material Application | High-Temperature Alloy; Stainless Steel; Steel |
| Shape | Square |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Coating/Finish | TiAlN |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.5000 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1875 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.5000 |
