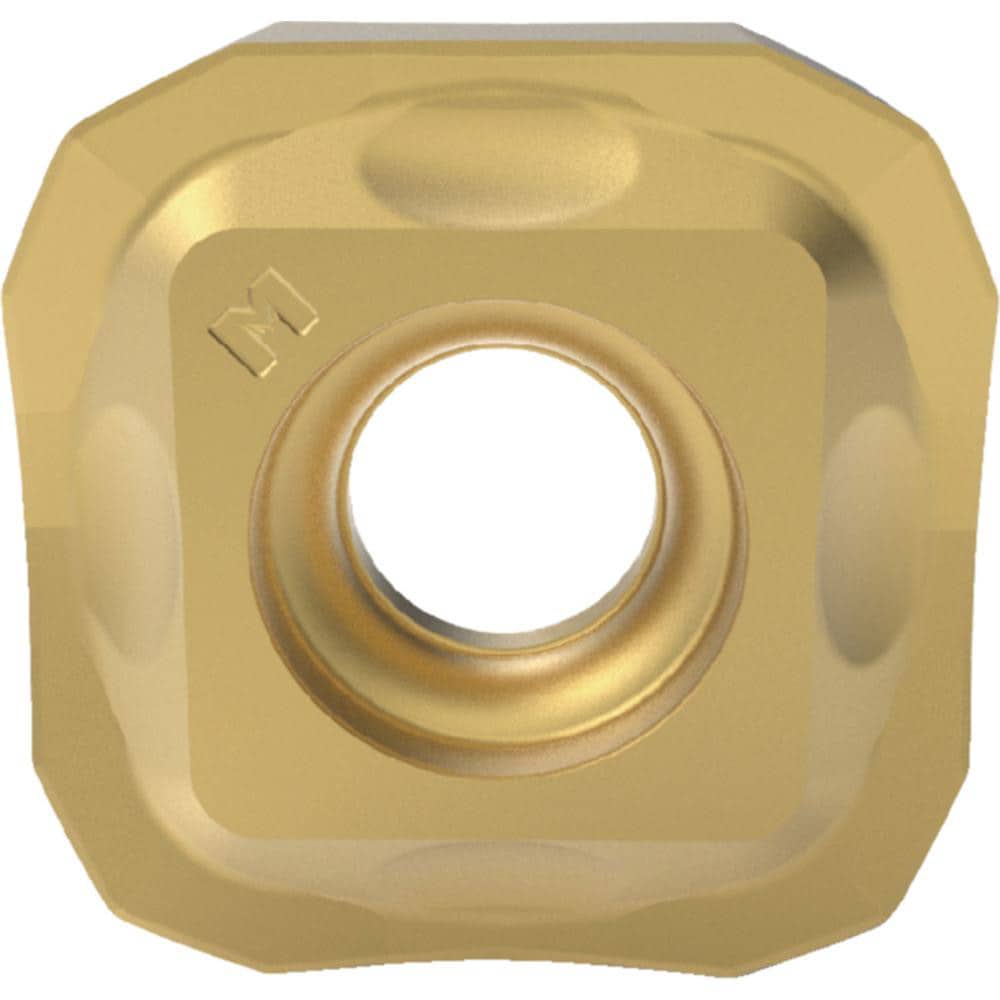

Brand: Widia / Part #: 4137987
Item #: 94025327
Brand: Widia
Model #: 4137987
Product Specifications
| Insert Style | SNMX |
| Insert Size Code | 1506 |
| Insert Size | 15 |
| Insert Material | Carbide |
| Width (Inch) | 5/8 |
| Manufacturer Grade | WU20PM |
| Length (Inch) | 5/8 |
| Thickness (Inch) | 1/4 |
| Inscribed Circle (Inch) | 5/8 |
| Inscribed Circle (Decimal Inch) | 0.6250 |
| Corner Radius (Decimal Inch) | 0.0472 |
| Corner Radius (Inch) | 3/64 |
| Insert Hand | Neutral |
| Relief Angle | 0.000 |
| Series | M8065HD |
| Coating Process | PVD |
| Hole Diameter (Decimal Inch) | 0.2126 |
| Maximum Depth of Cut (Decimal Inch) | 0.6250 |
| Number Of Cutting Edges | 8 |
| Insert Shape | Square |
| Rake | Negative |
| Primary Workpiece Material | Non-Ferrous Metal; Hard Material; Stainless Steel; Cast Iron; Super-alloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| Ansi Code | SNMX150612ZNSNMM |
| Iso Code | SNMX150612ZNSNMM |
| Manufacturers Catalog Number | SNMX150612ZNSNMM |
| Cutter Series Compatibility | M8065HD SNMX1506 |
| Chip Breaker | MM |
| Cutting Direction | Neutral |
| Material Application | High-Temperature Alloy; Stainless Steel; Steel |
| Shape | Square |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Double |
| Coating/Finish | TiAlN |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.6250 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2500 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.6250 |
