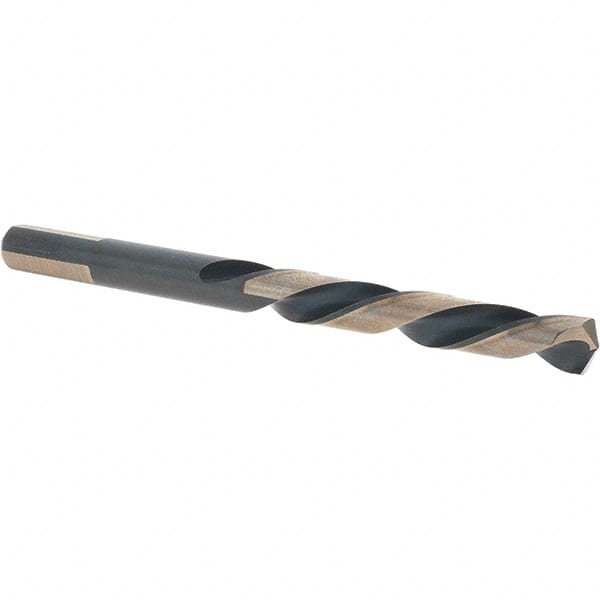

Cle-Line - 5/16" High Speed Steel, 135° Point, Round with Flats Shank Maintenance Drill Bit
Item #: 57594723
Brand: Cle-Line
Model #: C23706
Features and Benefits
High speed steel (HSS) provides good wear resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
Oxide/Gold provides a polished finish and prevents chip building, galling and welding on a workpiece. It is commonly used in several applications on low carbons, stainless steel and iron based ferrous metals.
| Product Specifications | |
|---|---|
| Drill Bit Size (Decimal Inch) | 0.3125 |
| Drill Bit Size (Inch) | 5/16 |
| Drill Bit Size (mm) | 7.94 |
| Drill Point Angle | 135 |
| Drill Bit Material | High Speed Steel |
| Drill Bit Finish/Coating | Oxide/Gold |
| Shank Type | Round with Flats |
| Overall Length (Decimal Inch) | 4.0000 |
| Overall Length (Inch) | 4 |
| Overall Length (mm) | 101.60 |
| Flute Length (Decimal Inch) | 2.5000 |
| Flute Length (Inch) | 2-1/2 |
| Cutting Direction | Left Hand |
| Shank Diameter (Inch) | 5/16 |
| Point Type | Split Point |
| Flute Type | Spiral |
| Spiral Type | Regular Spiral |
| Through Coolant | No |
| Number of Flats | 3 |
| Web Configuration | Tapered |
| Web Thinning | Web-Thinned |
| Drill Bit Grade | Heavy Duty |
| Series/List | 1875L |
| Point Type | Split Point |
