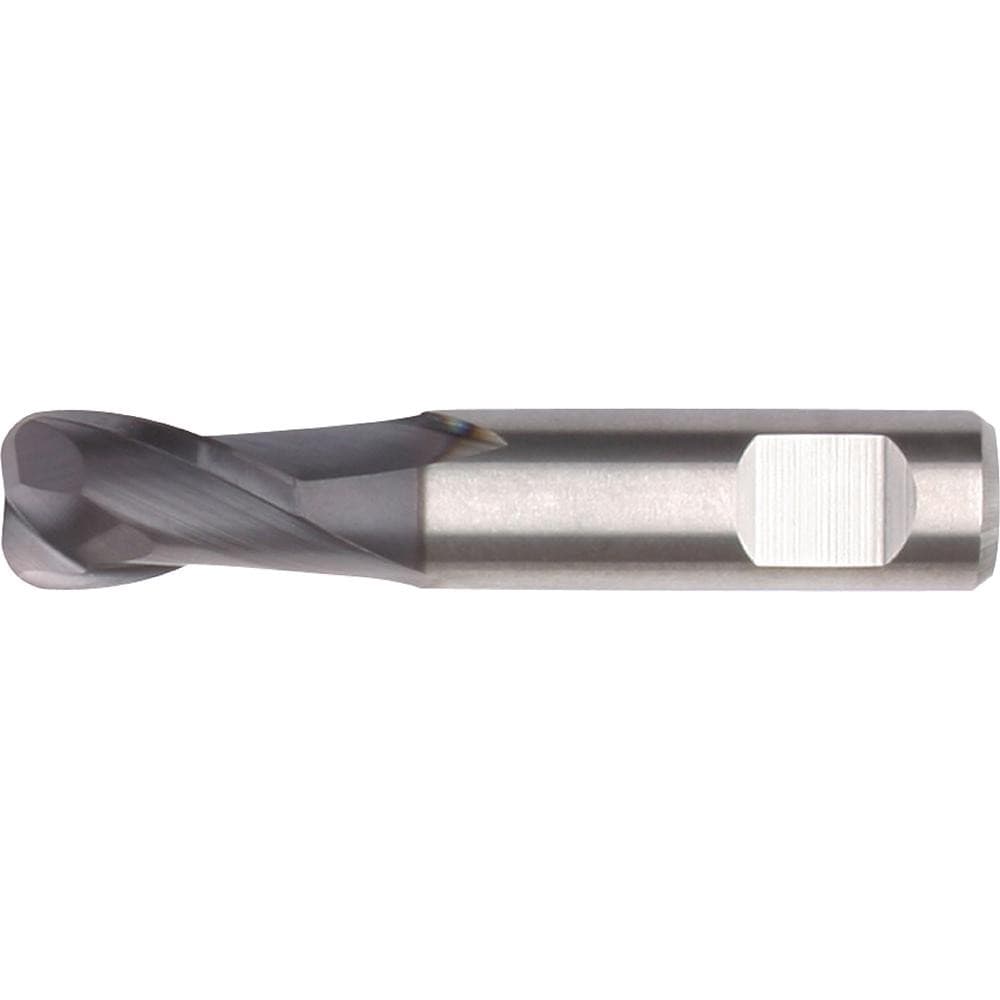

Brand: Widia / Part #: 2343566
Item #: 97945323
Brand: Widia
Model #: 2343566
Product Specifications
| Mill Diameter (mm) | 3.00 |
| Corner Radius (mm) | 0.50 |
| Coating/Finish | TiAlN |
| End Mill Material | Solid Carbide |
| Number Of Flutes | 2 |
| Single Or Double End | Single |
| Overall Length (mm) | 38.0000 |
| Length of Cut (mm) | 5.0000 |
| Cutting Direction | Right Hand |
| Coolant Through | No |
| Pitch | Normal |
| Flute Direction | Right Hand |
| Helix Angle | 30 |
| Chipbreaker | No |
| End Type | Corner Radius |
| Length Type | Regular |
| Flute Type | Helical |
| Extended Reach | No |
| Shank Type | Cylindrical |
| Centercutting | Yes |
| Variable Index | No |
| Variable Helix | No |
| Material Removal Type | Finishing |
| Shank Diameter (mm) | 6.0000 |
| Neck Diameter (mm) | 0.000 |
| Minimum Helix Angle | 30 |
| Maximum Helix Angle | 30 |
| Material Grade | AlTiN-MT |
| Series | 423048 |
| Coating Classification | PVD |
| Helix Style | Medium |
