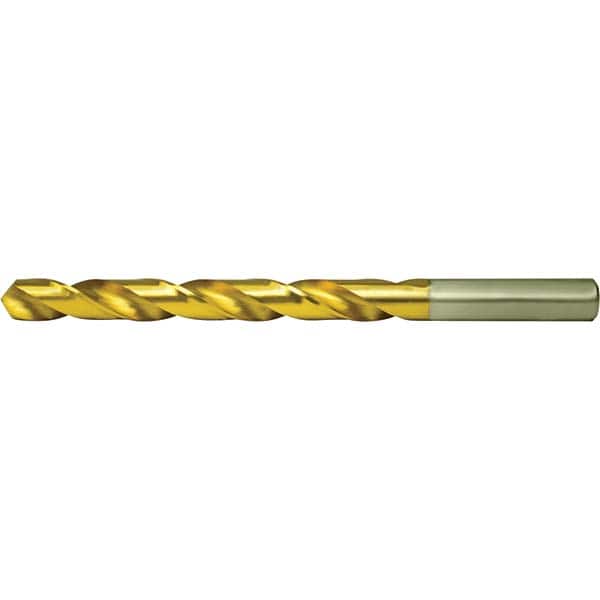

Cle-Line - Jobber Length Drill Bits Drill Bit Size (Letter): Z Drill Bit Size (Decimal Inch): 0.4100
Item #: 14282180
Brand: Cle-Line
Model #: C24709
Features and Benefits
High speed steel (HSS) provides good wear resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
Titanium Nitride (TiN) is a multi-purpose coating which increases chip flow in softer materials. The heat and hardness resistance allows the tool to run at higher speeds than uncoated tools.
Spiral flutes are constructed with a higher flute angle to remove chips more easily.
Product Specifications
Jobber Length Drill Bits; Drill Bit Size (Letter): Z ; Drill Bit Size (Decimal Inch): 0.4100 ; Drill Point Angle: 118 ; Drill Bit Material: High Speed Steel ; Drill Bit Finish/Coating: TiN ; Flute Type: Spiral
| Drill Bit Size (Letter) | Z |
| Drill Bit Size (Decimal Inch) | 0.4100 |
| Drill Point Angle | 118 |
| Drill Bit Material | High Speed Steel |
| Drill Bit Finish/Coating | TiN |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Coolant Through | No |
| Flute Length (Decimal Inch) | 3.8800 |
| Overall Length (Inch) | 5.25 |
| Flute Length x Diameter Ratio | 3xD |
| Point Type | Radial |
| Shank Diameter (Decimal Inch) | 0.4100 |
| Maximum Drilling Depth (Decimal Inch) | 1.0300 |
| Spiral Type | Regular Spiral |
| Shank Length (Inch) | 1-3/8 |
| Specification Designation | ANSI |
| Web Configuration | Tapered |
| Drill Bit Diameter Tolerance (Decimal Inch) | +0.0000 to -0.0010 |
| Number of Flutes | 2 |
| PSC Code | 5133 |
| Drill Bit Grade | General Purpose |
| Material Grade | HSS |
| Series/List | 1898T |
