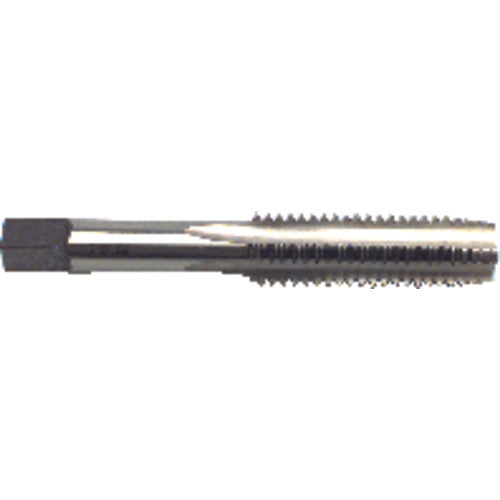

1/2″ NC, 13 TPI, 4 -Flute, H11 Plug Straight Flute Tap Series/List #2014
Item #: MT3934309
Brand: Morse Cutting Tools
Model #: 34309
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | 1/2″ |
| Chamfer | 3 to 5 Threads |
| Threads per Inch (TPI) | 13 |
| Coating | Bright |
| Thread Standard | NC |
| Flute Type | Straight |
| Overall Length (OAL) | 3-3/8″ |
| End Shape | Chamfer |
| Thread Cutting Part Length (THL) | 1-21/32″ |
| Style | Plug |
| Flute Count (NOF) | 4 |
| Cutting Direction (HAND) | Right Hand |
| Cutting Edge Material | HSS |
| Measurement Type | Fractional |
| Thread Tolerance Class (TCTR) | H11 |
| Series/List # | 2014 |
| Tool Type | General Purpose Tap |
| Thread Size | 1/2″ - 13 |
