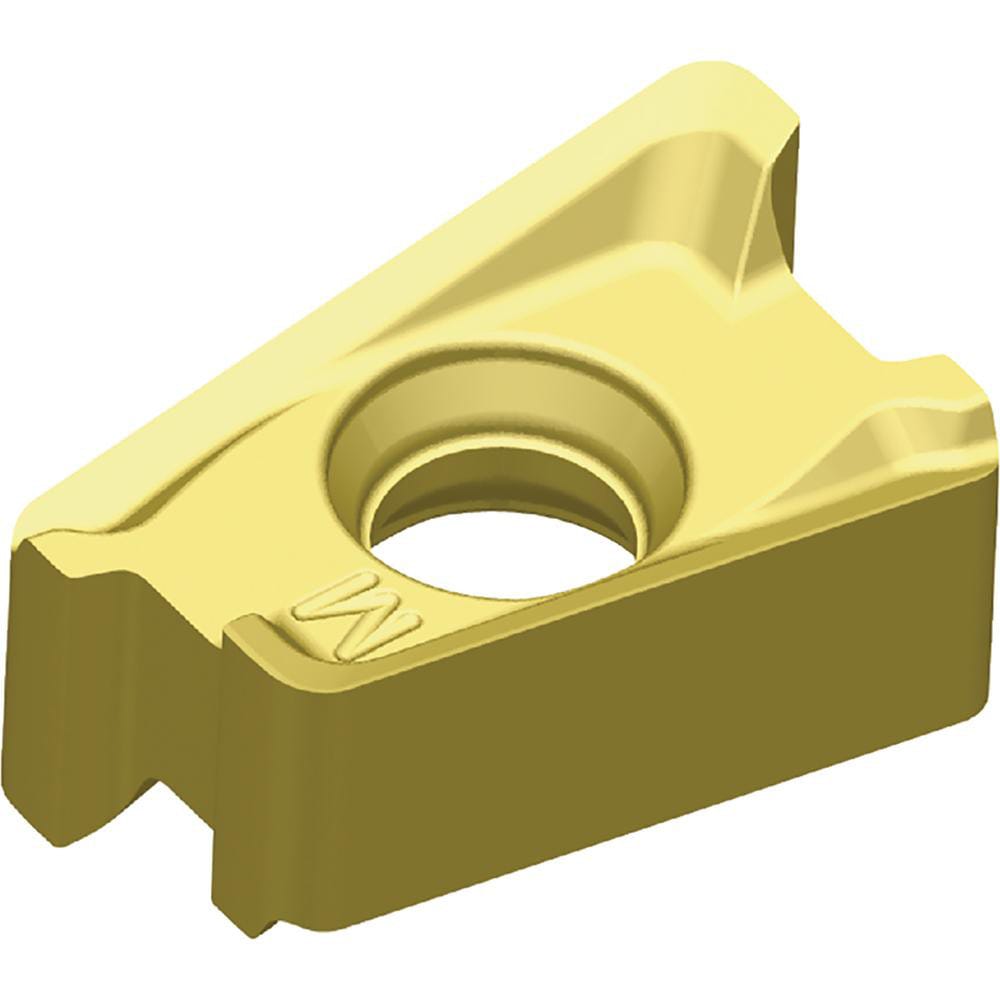

Brand: Widia / Part #: 6425355
Item #: 95100186
Brand: Widia
Model #: 6425355
Product Specifications
| Insert Style | XNPU |
| Insert Size Code | 1004 |
| Insert Size | 10 |
| Insert Material | Carbide |
| Manufacturer Grade | WK15CM |
| Inscribed Circle (Decimal Inch) | 0.2598 |
| Corner Radius (Decimal Inch) | 0.0470 |
| Corner Radius (Inch) | 3/64 |
| Insert Hand | Right Hand |
| Relief Angle | 0.000 |
| Series | VSM490-10 |
| Coating Process | CVD |
| Hole Diameter (Decimal Inch) | 0.1340 |
| Maximum Depth of Cut (Decimal Inch) | 0.4254 |
| Number Of Cutting Edges | 4 |
| Insert Shape | Rectangle |
| Rake | Negative |
| Primary Workpiece Material | Cast Iron |
| Primary Workpiece Material Code | K |
| Ansi Code | XNPU1003SRMM |
| Iso Code | XNPU100412SRMM |
| Manufacturers Catalog Number | XNPU1003SRMM |
| Cutter Series Compatibility | VSM490 XN10 |
| Chip Breaker | MM |
| Cutting Direction | Right Hand |
| Material Application | High-Temperature Alloy; Stainless Steel; Steel |
| Shape | Rectangle |
| Insert Holding Method | Screw |
| Coating Classification | CVD |
| Single or Double Sided Insert | Double |
| Coating/Finish | TiCN; TiN; Al2O3 |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.2598 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1900 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.4570 |
