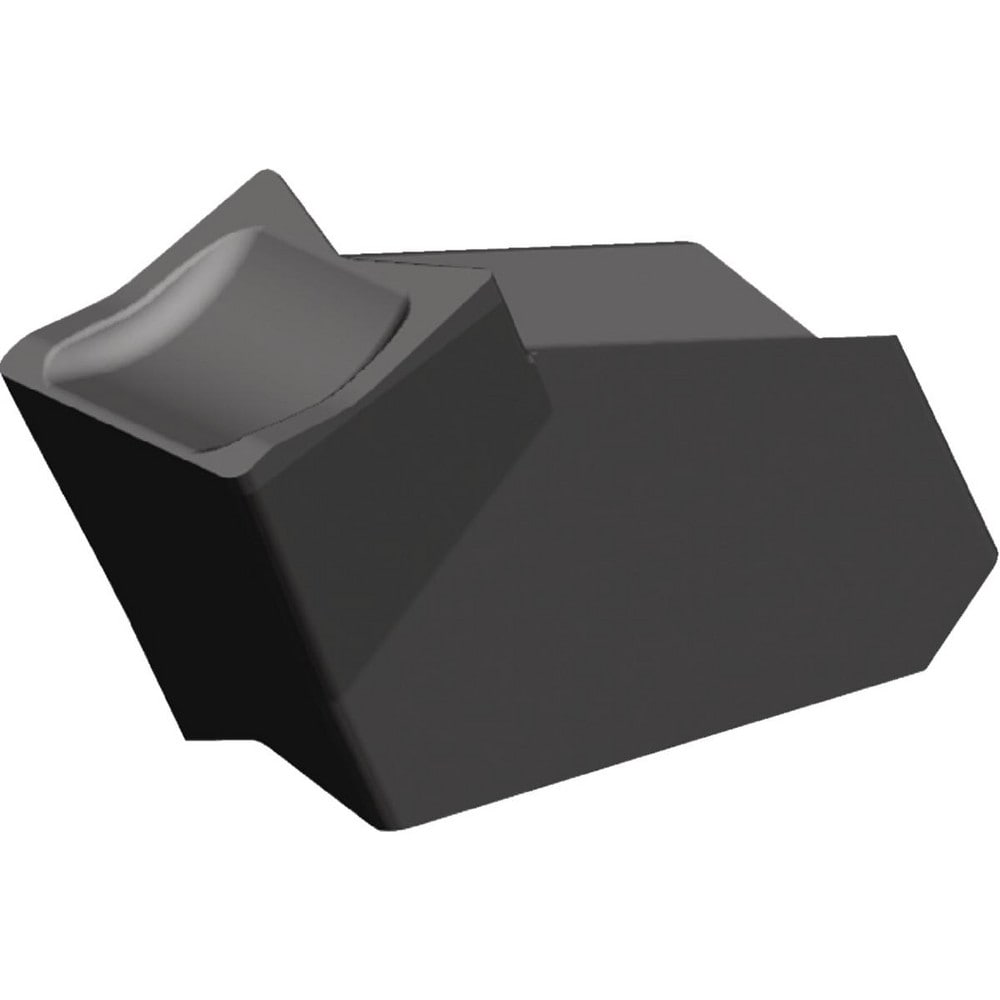

Brand: Widia / Part #: 4109102
Item #: 93319804
Brand: Widia
Model #: 4109102
Product Specifications
| Insert Style | WGFN |
| Insert Size Code | 4 |
| Insert Material | Carbide |
| Manufacturer Grade | TN6025 |
| Cutting Width (Decimal Inch) | 0.1610 |
| Cutting Width (mm) | 4.100 |
| Insert Holding Method | Clamp |
| Lead Angle Direction | Neutral |
| Insert Hand | Neutral |
| Lead Angle | 0.000 |
| Relief Angle | 26.000 |
| Corner Radius (mm) | 0.28 |
| Corner Radius (Decimal Inch) | 0.0110 |
| Chipbreaker | FN |
| Multi-use Tool | No |
| Cutting Tool Application | Cut-Off |
| Series | WGFN |
| Coating Process | PVD |
| Overall Length (Decimal Inch) | 0.4980 |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Super-alloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; K; M |
| Secondary Workpiece Material | Non-Ferrous Metal |
| Secondary Workpiece Material Code | N |
| Ansi Code | WGFN4 |
| Iso Code | WGFN4 |
| Cutting Height (Decimal Inch) | 0.2160 |
| Manufacturers Catalog Number | WGFN4 |
| Insert Seat Size | 4 |
| Cutting Direction | Neutral |
| Maximum Depth of Cut (Decimal Inch) | 0.4980 |
| Coating Classification | PVD |
| Insert Width (Decimal Inch) | 0.1370 |
| Overall Width (Decimal Inch - 4 Decimals) | 0.1610 |
| Coating/Finish | AlTiN |
| Single Or Double End | Single |
