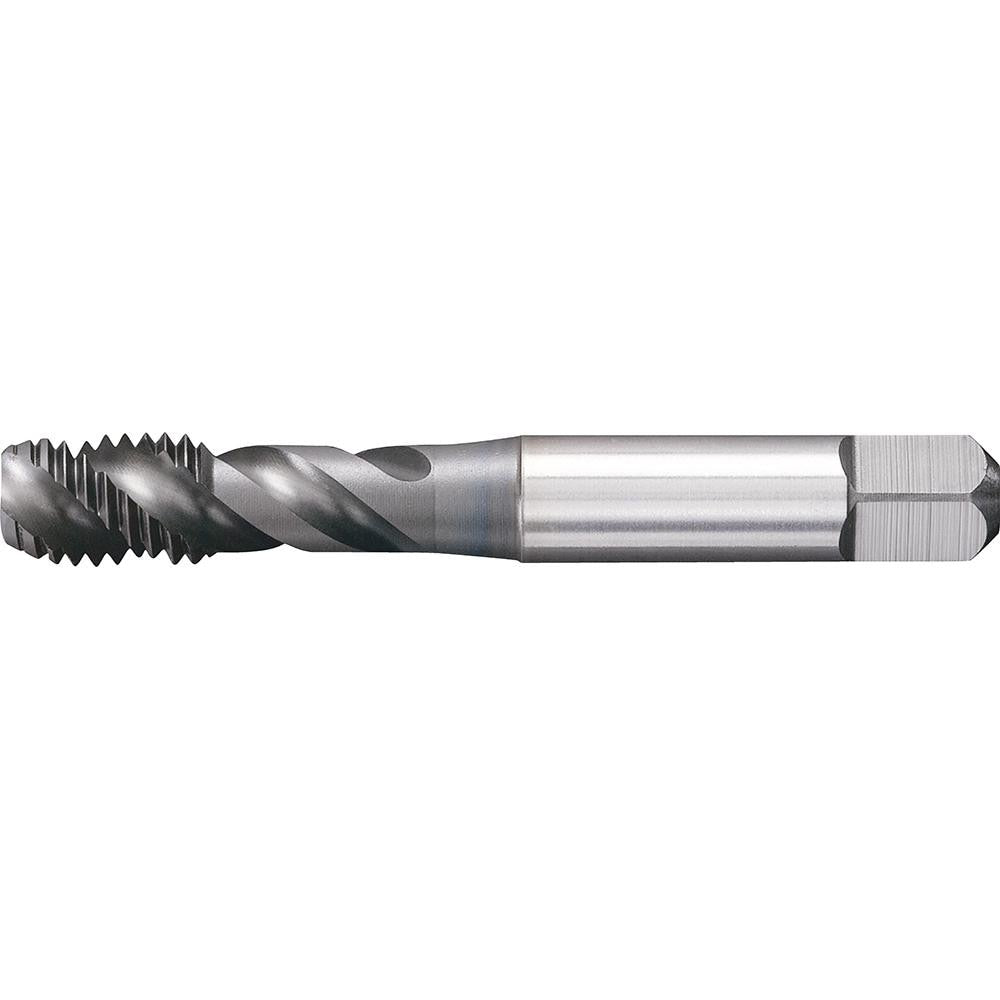

Brand: Widia / Part #: 3955060
Item #: 97433874
Brand: Widia
Model #: 3955060
Product Specifications
| Thread Size (mm) | M3x0.5 |
| Chamfer | Modified Bottoming |
| Thread Limit | D3 |
| Class Of Fit | 6HX |
| Number Of Flutes | 2 |
| Material | Powdered Metal |
| Threads per Inch | 51 |
| Thread Direction | Right Hand |
| Flute Direction | Right Hand |
| Coating/Finish | C; CrC |
| Thread Depth (mm) | 19.10 |
| Coolant Through | No |
| Thread Length (mm) | 16.00 |
| Overall Length (mm) | 49.3000 |
| Thread Pitch (mm) | 0.50 |
| Thread Standard | Metric |
| Material Grade | WS34MG |
| Shank Diameter (mm) | 3.5800 |
| Square Length (mm) | 4.80 |
| Square Size (mm) | 2.74 |
| Material Application | Stainless Steel |
| Series | GT30 |
