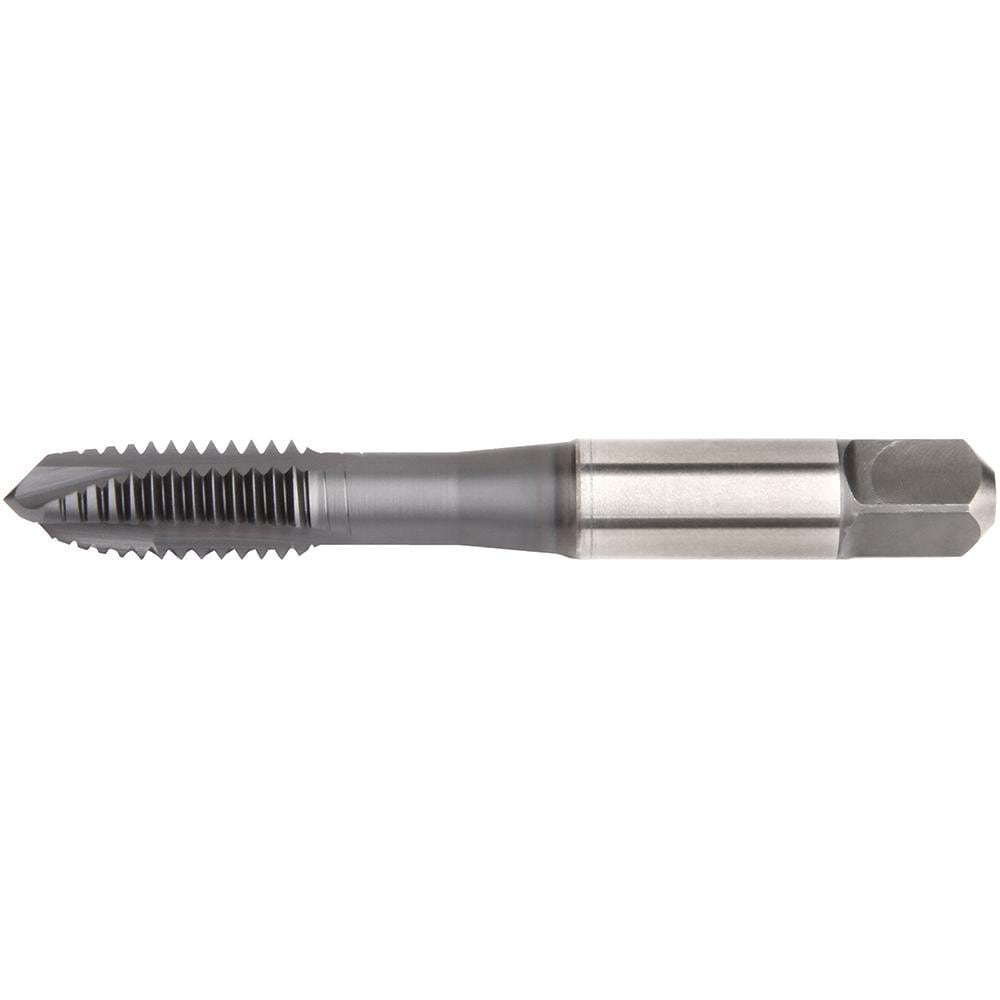

Brand: Widia / Part #: 5366967
Item #: 95789814
Brand: Widia
Model #: 5366967
Product Specifications
| Thread Size (Inch) | 7/16-14 |
| Number Of Flutes | 3 |
| Chamfer | Plug |
| Thread Limit | H3 |
| Class Of Fit | H3 |
| Coating/Finish | TiN |
| Threads per Inch | 14 |
| Material | High Speed Steel |
| Coolant Through | No |
| Thread Direction | Right Hand |
| Thread Depth (Decimal Inch) | 1.4900 |
| Thread Pitch (Decimal Inch) | 0.0714 |
| Thread Standard | UNC |
| Material Grade | WU41EG |
| Thread Length (Decimal Inch) | 0.8800 |
| Overall Length (Decimal Inch) | 3.1600 |
| Shank Diameter (Decimal Inch) | 0.3230 |
| Square Size (Decimal Inch) | 0.2390 |
| Material Application | Non-Ferrous Metal; Stainless Steel; Cast Iron; Steel |
| Series | VT-SPO |
