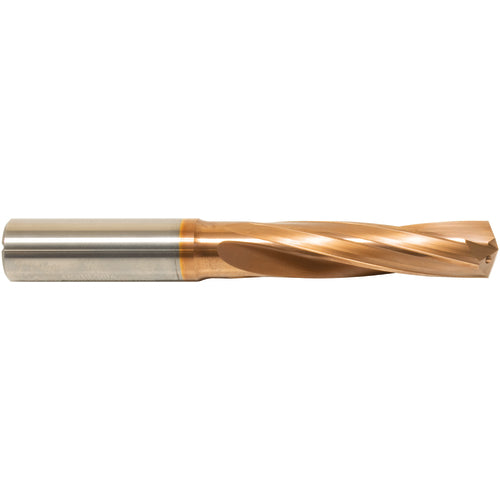

#13 Dia. × 6 mm Shank × 24 mm Flute Length × 66 mm OAL, 3xD, 135°, ZrCN, 2 Flute, Coolant Thru, Round Solid Carbide Drill Series/List #NG05
Item #: MT711443786
Brand: Morse Cutting Tools
Model #: 1443786
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | #13 |
| Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.185″ |
| Tool Type | Drill |
| Drill Bit Size / Cutting Diameter (DC) - Letter / Wire Gauge | #13 |
| Point Shape | Self Centering |
| Length Group | 3xD |
| Measurement Type | Wire Gauge |
| Coating | ZrCN |
| Series/List # | DBIC26 |
| Applicable Material | Aluminum / Non-Ferrous Materials |
| Usable Length (LU) | 24 mm |
| Connection Diameter Machine Side (DCONMS) | 6 mm |
| Length Chip Flute (LCF) | 24 mm |
| Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 66 mm |
| Point Angle (SIG) | 135 Degrees |
| Flute Count (NOF) | 2 |
| Flute Helix Angle (FHA) | 15 Degrees |
| Cutting Direction (HAND) | Right Hand |
| Shank Type | Round |
| Body Material | Carbide |
