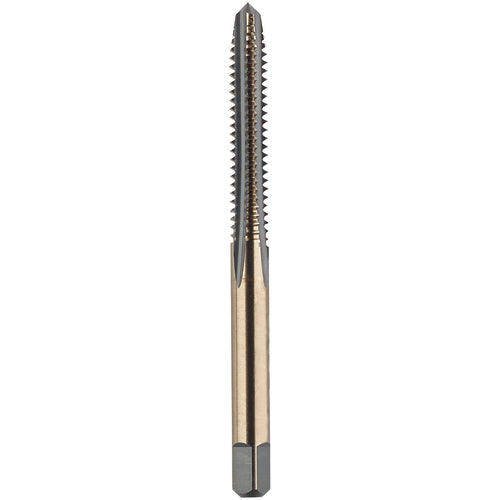

#10 NC, 24 TPI, 4 -Flute, H3 Bottoming Straight Flute Tap Series/List #114
Item #: MX1086804
Brand: Morse Cutting Tools
Model #: 86804
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | #10 |
| Tool Type | General Purpose Tap |
| Threads per Inch (TPI) | 24 |
| Chamfer | 1 to 2 threads |
| Thread Standard | NC |
| Coating | Black & Gold |
| Overall Length (OAL) | 2-3/8″ |
| Flute Type | Straight |
| Thread Cutting Part Length (THL) | 7/8″ |
| Style | Bottoming |
| Flute Count (NOF) | 4 |
| Measurement Type | Machine Screw |
| Cutting Edge Material | HSS |
| Series/List # | 114 |
| Thread Tolerance Class (TCTR) | H3 |
| Thread Size | #10 - 24 |
