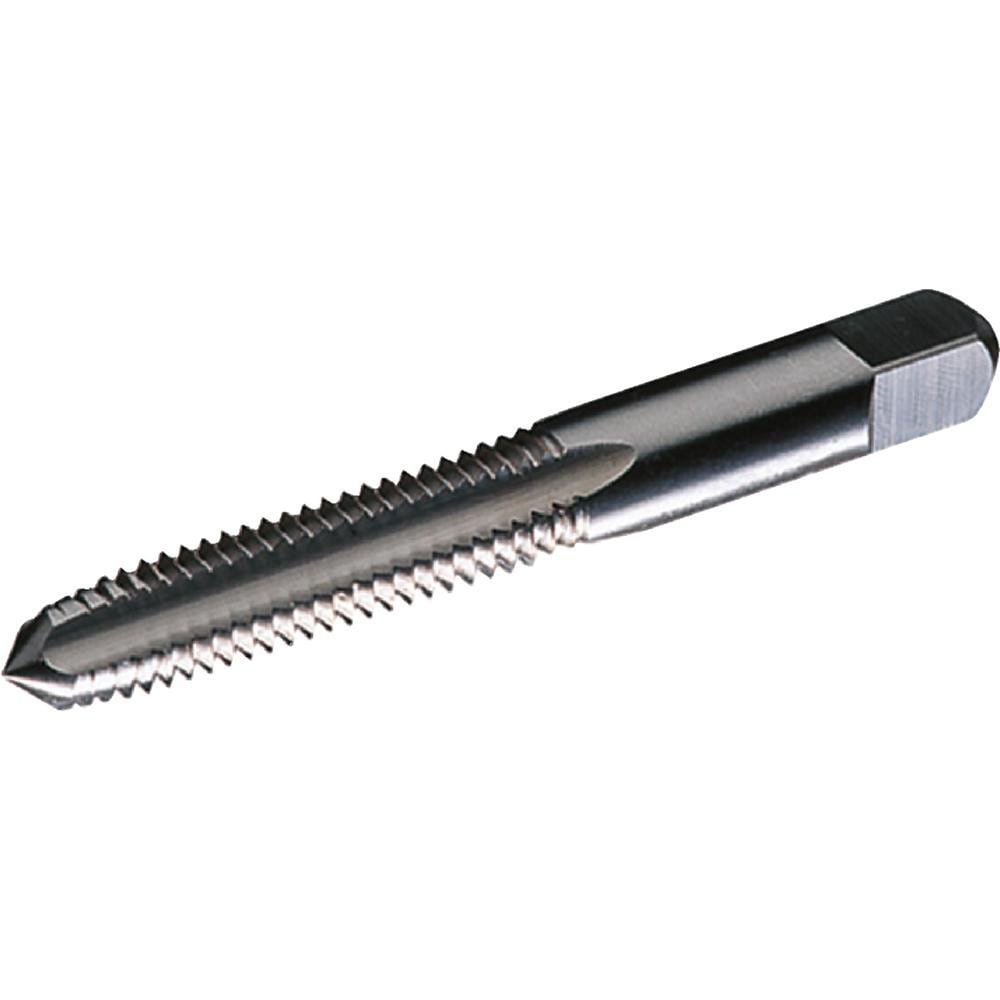

Brand: Widia / Part #: 2750807
Item #: 76973437
Brand: Widia
Model #: 2750807
Product Specifications
| Tap Type | Machine |
| Thread Size (Inch) | 1-1/4-12 |
| Class Of Fit | 2B |
| Number Of Flutes | 6 |
| Chamfer | Bottoming |
| Material | High Speed Steel |
| Coating/Finish | Uncoated |
| Threads per Inch | 12 |
| Thread Direction | Right Hand |
| Coolant Through | No |
| Thread Standard | UNF |
| Thread Pitch (Decimal Inch) | 0.0833 |
| Overall Length (Decimal Inch) | 5.7500 |
| Thread Length (Decimal Inch) | 2.5625 |
| Thread Depth (Decimal Inch) | 2.5625 |
| Application | Metal |
| Shank Diameter (Decimal Inch) | 1.0210 |
| Square Length (mm) | 25.40 |
| Square Size (Decimal Inch) | 0.7660 |
| Series | 7303 |
| Shank Length (Decimal Inch) | 3.1875 |
