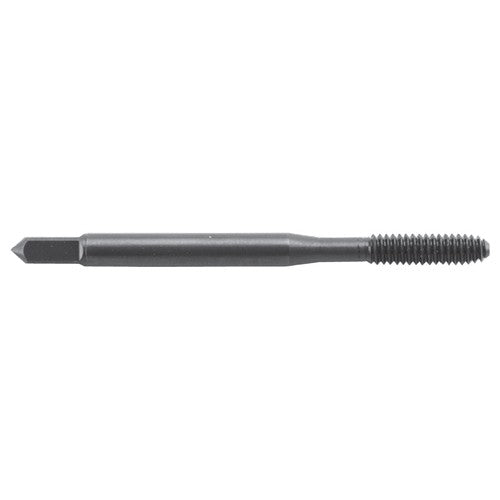

3.5-0.6; Plug; D3; Viper T Roll Form Tap
Item #: NT1051013
Brand: Nachi America Inc
Model #: 51013
| Product Specifications | |
|---|---|
| Tool Type | Forming Tap |
| Chamfer | 4P-5P |
| Thread Diameter Size (TDZ) | M3.5 |
| Special Feature | High Performance |
| Thread Pitch (TP) | 0.6 mm |
| Measurement Type | Metric |
| Overall Length (OAL) | 50.8 mm |
| Flute Type | Fluteless |
| Thread Cutting Part Length (THL) | 10.9982 mm |
| Style | Plug |
| Connection Diameter Machine Side (DCONMS) | 3.5814 mm |
| Cutting Edge Material | HSSE-V |
| Flute Count (NOF) | 0 |
| Cutting Direction (HAND) | Right Hand |
| Thread Tolerance Class (TCTR) | D3 |
| Product_Description | Viper T Roll Form Tap |
| Coating | Black Oxide |
| Thread Size | M3.5 × 0.6 |
| Helix Angle | CW |
