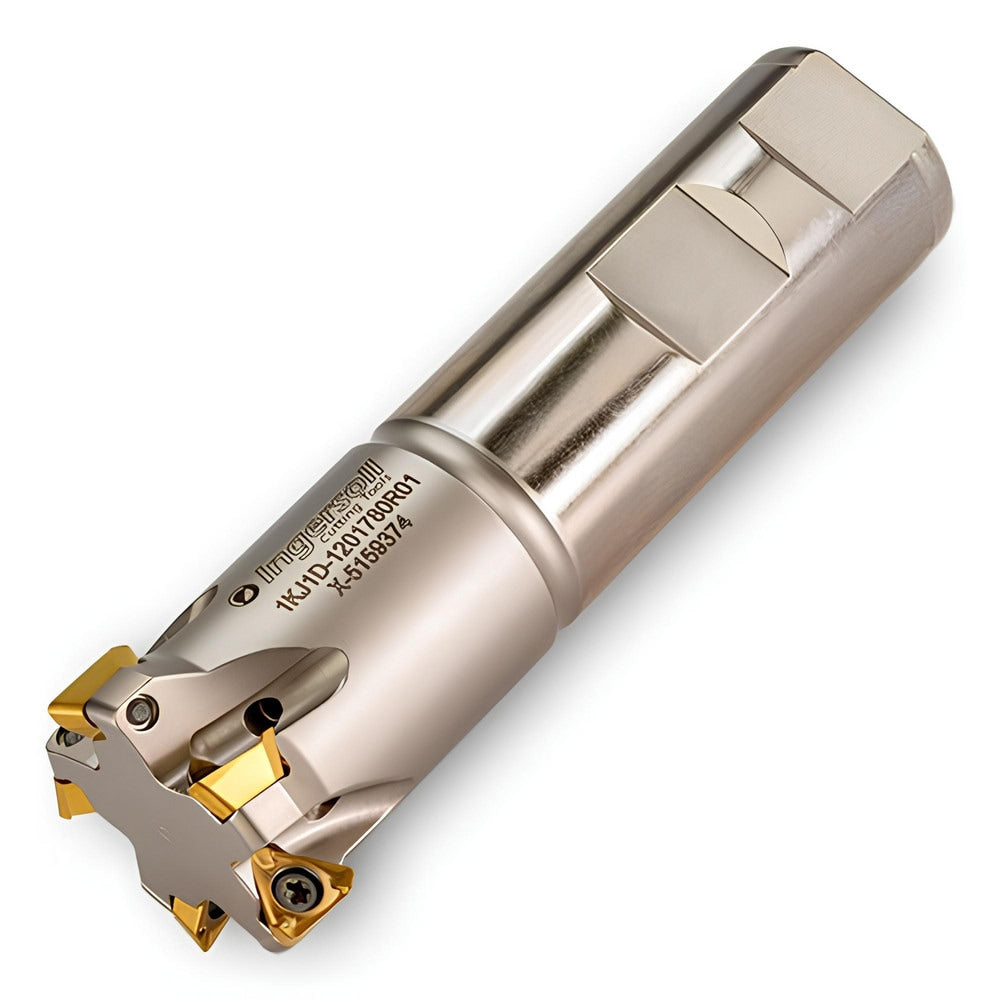

Brand: Ingersoll Cutting Tools / Part #: 3031293
Item #: 96743190
Brand: Ingersoll Cutting Tools
Model #: 3031293
Product Specifications
| Minimum Cutting Diameter (mm) | 20.00 |
| Maximum Cutting Diameter (Decimal Inch) | 0.7874 |
| Maximum Cutting Diameter (mm) | 20.00 |
| Maximum Depth of Cut (mm) | 7.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.2756 |
| Cutter Style | 1KJ1D |
| Shank Type | Weldon Flat |
| Shank Diameter (Decimal Inch) | 0.7874 |
| Shank Diameter (mm) | 20.0000 |
| Maximum Ramping Angle | 3.3 ? |
| Insert Holding Method | Screw |
| Overall Length (mm) | 90.0000 |
| Overall Length (Decimal Inch) | 3.5433 |
| Tool Material | Steel |
| Series | 1KJ1D |
| Flute Type | Spiral |
| Lead Angle | 90 |
| Shank Length (Decimal Inch) | 2.5591 |
| Shank Length (mm) | 65.000 |
| Head Length (Inch) | 63/64 |
| Head Length (Decimal Inch) | 0.9843 |
| Tool Application | Facing; Shouldering; Ramping |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| End Mill Type | Shoulder Square End Mill |
| Rake | Positive |
| Complete Insert Compatibility | THxS0604.. |
| Insert Compatibility | THxS0604.. |
| Hand of Holder | Right Hand |
| Multi-Use Tool | Yes |
| Manufacturers Catalog Number | 1KJ1D020025W4R00 |
| Usable Length (mm) | 25.000 |
| Number Of Flutes | 2 |
| Usable Length (Decimal Inch) | 0.9843 |
| Number Of Cutter Inserts | 2 |
| Coolant Through | Yes |
