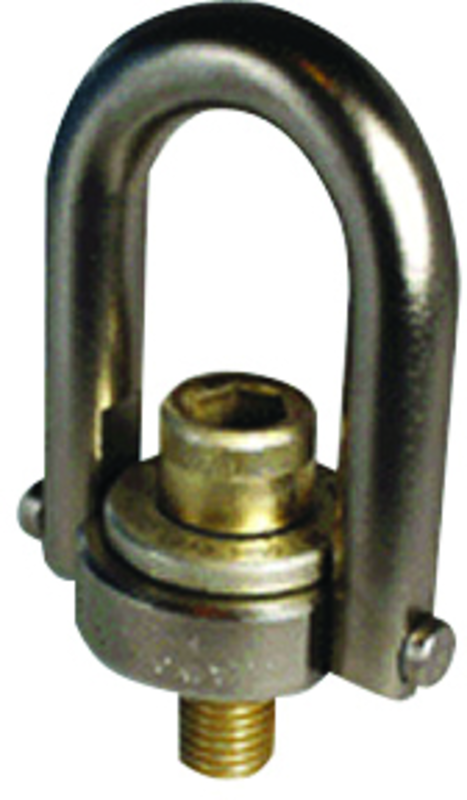

1/2-13 Center Pull Hoist Ring

Item #: SG6723313
Manufacturer: Jergens
Mfg #: 23313

Technical Specifications:
•Base Diameter: 1.50 •Base Height: 2-3/8 •Brand Name: Jergens •Diameter: .75 •External Radius: 4.78 •Overall Width: 3.52 •Radius: .88 •Rating Load: 2500 lbs •Size: 1/2-13 •Thread Length: 1-1/4 •Torque (ft/lbs): 28 •Type: Center-Pull Envirolox ™

Description:
•Full 360 degree Swivel and 180 degree Pivot action •Rated at 5:1 Strength factor •Material: Alloy Steel •Finish: Envirolox TM Electroless Nickel protective coating •U-Bar, bolt, pins, base, washer and bushing are magnetic particle inspected •Washer: Finish: EnviroloxTM Electroless Nickel protective coating •Proof tested to 200% of rated load capacity

Shipping Info:
•Actual Weight - 2.5000
