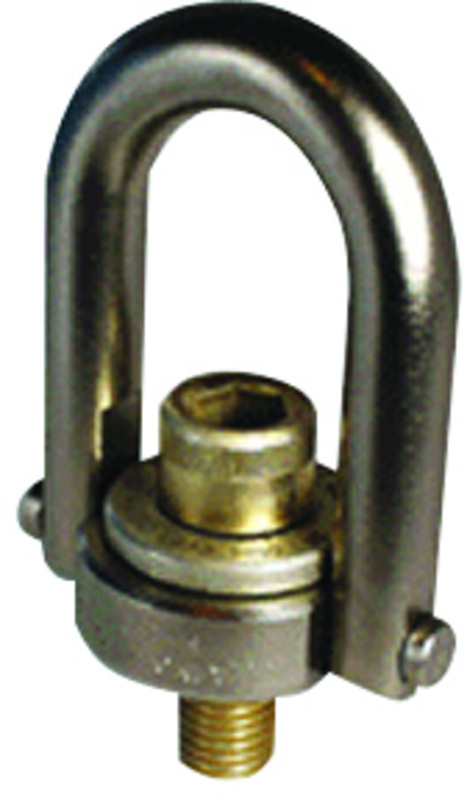

1-8 Center Pull Hoist Ring

Item #: SG6723327
Manufacturer: Jergens
Mfg #: 23327

Technical Specifications:
•Base Diameter: 2.31 •Base Height: 2-11/16 •Brand Name: Jergens •Diameter: 1.00 •External Radius: 6.52 •Overall Width: 5.14 •Radius: 1.40 •Rating Load: 10000 lbs •Size: 1-8 •Thread Length: 2-1/4 •Torque (ft/lbs): 230 •Type: Center-Pull Envirolox ™

Description:
•Full 360 degree Swivel and 180 degree Pivot action •Rated at 5:1 Strength factor •Material: Alloy Steel •Finish: Envirolox TM Electroless Nickel protective coating •U-Bar, bolt, pins, base, washer and bushing are magnetic particle inspected •Washer: Finish: EnviroloxTM Electroless Nickel protective coating •Proof tested to 200% of rated load capacity

Shipping Info:
•Actual Weight - 7.9100
