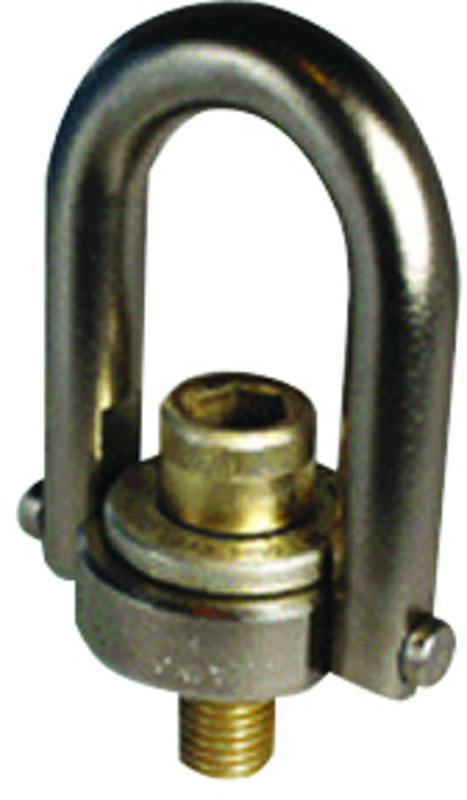

M6 Center Pull Hoist Ring

Item #: SG6723355
Manufacturer: Jergens
Mfg #: 23355

Technical Specifications:
•Base Diameter: 19 •Base Height: 34 •Brand Name: Jergens •Diameter: 9.7 •External Radius: 67.8 •Overall Width: 46.7 •Radius: 10.9 •Rating Load: 200 lbs •Size: M6 x 1.0 •Thread Length: 13.5 •Torque (ft/lbs): .6 •Type: Center-Pull Envirolox ™

Description:
•Full 360 degree Swivel and 180 degree Pivot action •Rated at 5:1 Strength factor •Material: Alloy Steel •Finish: Envirolox TM Electroless Nickel protective coating •U-Bar, bolt, pins, base, washer and bushing are magnetic particle inspected •Washer: Finish: EnviroloxTM Electroless Nickel protective coating •Proof tested to 200% of rated load capacity

Shipping Info:
•Actual Weight - .4500
