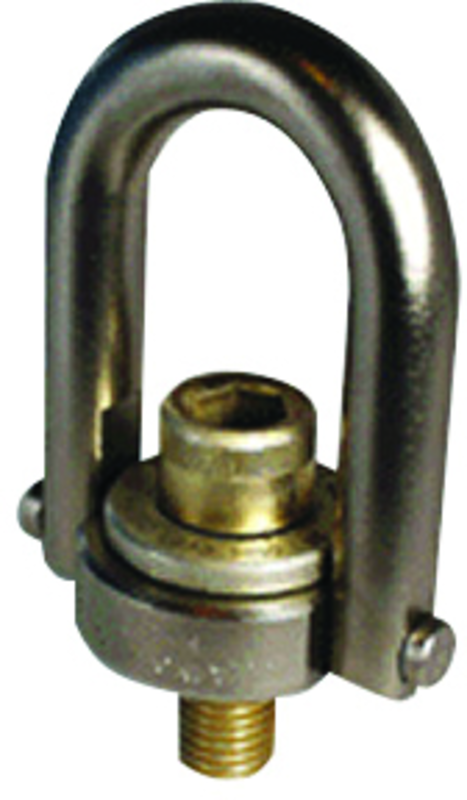

M48 Center Pull Hoist Ring

Item #: SG6723385
Manufacturer: Jergens
Mfg #: 23385

Technical Specifications:
•Base Diameter: 106.4 •Base Height: 154.5 •Brand Name: Jergens •Diameter: 44.4 •External Radius: 316.7 •Overall Width: 217.2 •Radius: 57.2 •Rating Load: 13500 lbs •Size: M48 x 5.0 •Thread Length: 88.0 •Torque (ft/lbs): 100 •Type: Center-Pull Envirolox ™

Description:
•Full 360 degree Swivel and 180 degree Pivot action •Rated at 5:1 Strength factor •Material: Alloy Steel •Finish: Envirolox TM Electroless Nickel protective coating •U-Bar, bolt, pins, base, washer and bushing are magnetic particle inspected •Washer: Finish: EnviroloxTM Electroless Nickel protective coating •Proof tested to 200% of rated load capacity

Shipping Info:
•Actual Weight - 36.0000
