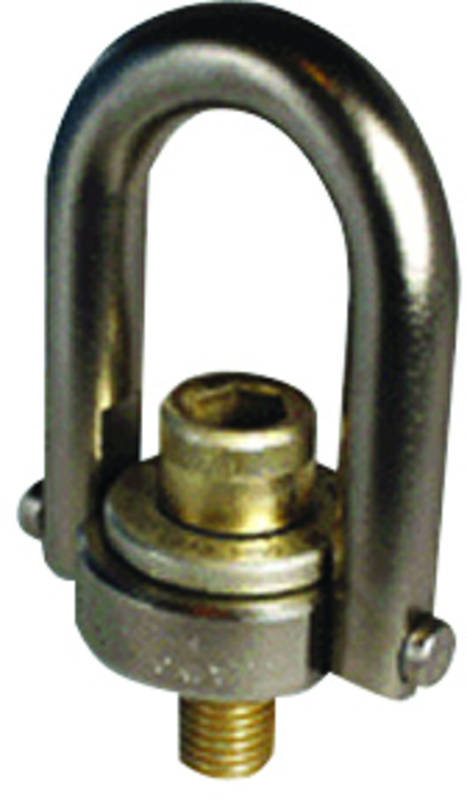

5/8-11 Center Pull Hoist Ring

Item #: SG6723416
Manufacturer: Jergens
Mfg #: 23416

Technical Specifications:
•Base Diameter: 1.50 •Base Height: 2-1/4 •Brand Name: Jergens •Diameter: .75 •External Radius: 4.78 •Overall Width: 5.32 •Radius: .88 •Rating Load: 4000 lbs •Size: 5/8-11 •Thread Length: 3/4 •Torque (ft/lbs): 60 •Type: Center-Pull Standard U-Bar •Weight: 2.7 lbs

Description:
•Full 360 degree swivel and 180 degree pivot action •Rated at 5:1 strength factor •Material: alloy steel •Finish: black oxide (except washer) •U-Bar, bolt, pins, base, washer and bushing are magnetic particle inspected •Washer: zinc plated with Gold Colored (inch), clear/blue (metric) conversion coating

Shipping Info:
•Actual Weight - 2.5300
