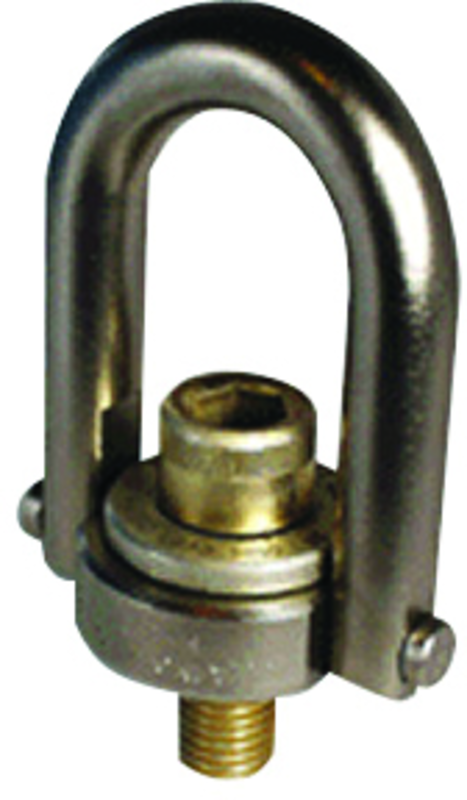

3/4-10 Center Pull Hoist Ring

Item #: SG6723520
Manufacturer: Jergens
Mfg #: 23520

Technical Specifications:
•Base Diameter: 2.31 •Base Height: 4 •Brand Name: Jergens •Diameter: 1.00 •External Radius: 8.11 •Overall Width: 5.14 •Radius: 1.40 •Rating Load: 7000 lbs •Size: 3/4-10 •Thread Length: 1 •Torque (ft/lbs): 100 •Type: Center-Pull Longbar •Weight: 8.45 lbs

Description:
•Full 360 degree swivel and 180 degree pivot action •Rated at 5:1 strength factor •Material: alloy steel •Finish: black oxide (except washer) •U-Bar, bolt, pins, base, washer and bushing are magnetic particle inspected •Washer: zinc plated with Gold Colored (inch), clear/blue (metric) conversion coating

Shipping Info:
•Actual Weight - 8.4800
