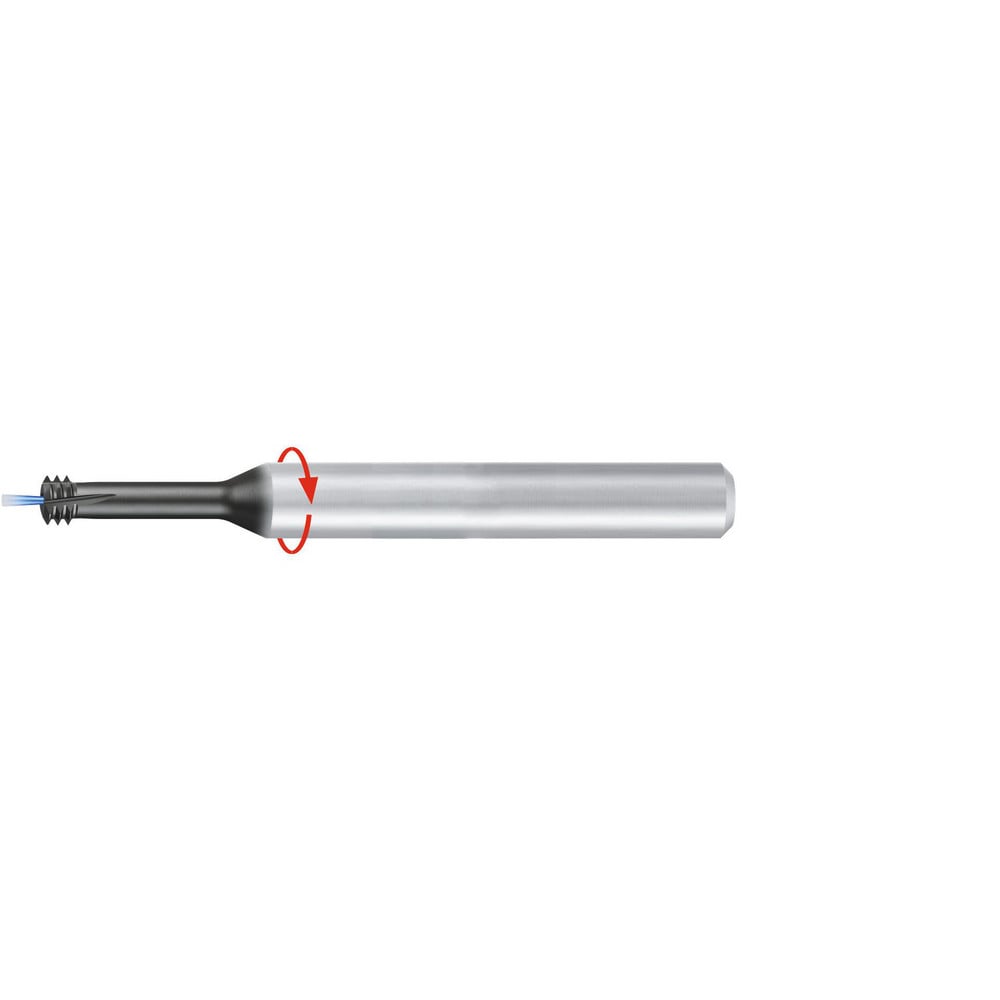

Brand: Emuge / Part #: GF26A729.5662
Item #: 93326072
Brand: Emuge
Model #: GF26A729.5662
Product Specifications
| Material | Solid Carbide |
| Thread Size (Inch) | 1/4-20 |
| Thread Depth (mm) | 14.60 |
| Thread Depth | 0.6690 |
| Thread Type | Left Hand |
| Shank Diameter (mm) | 6.0000 |
| Cutting Diameter (mm) | 4.95 |
| Shank Type | Cylindrical |
| Cutting Diameter (Decimal Inch) | 0.1949 |
| Length of Cut (mm) | 3.7000 |
| Minimum Nominal Diameter (Decimal Inch) | 0.1992 |
| Minimum Nominal Diameter (Inch) | 1/4 |
| Minimum Nominal Diameter (mm) | 0.00 |
| Shank Length (mm) | 36.000 |
| Overall Length (mm) | 55.0000 |
| Thread Standard | UNC |
| Flute Direction | Left Hand |
| Material Grade | Ultra Fine Grain |
| Series | GF26A |
| Number Of Flutes | 4 |
| Coating/Finish | TiALN |
| Coolant Through | Yes |
| Thread Direction | Left Hand/Right Hand |
| Teeth Per Inch | 20 |
