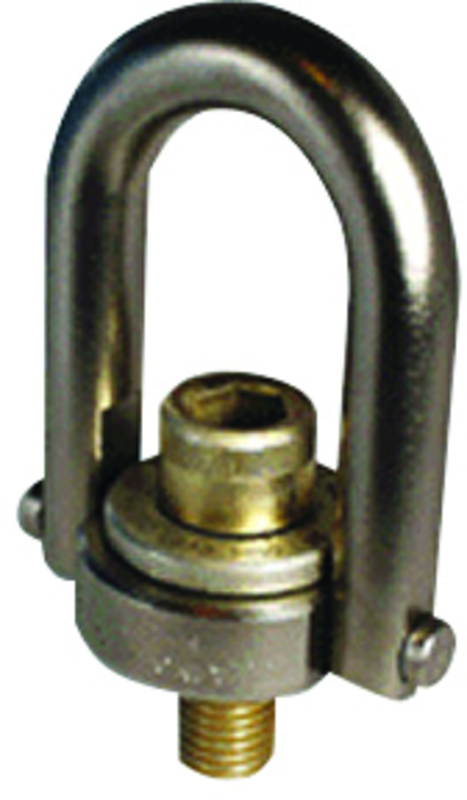

1/2-13 Center Pull Hoist Ring

Item #: SG6923313LC
Manufacturer: Jergens
Mfg #: 23313LC

Technical Specifications:
•Base Diameter: 1.50 •Base Height: 2-3/8 •Brand Name: Jergens •Diameter: .75 •External Radius: 4.78 •Overall Width: 3.52 •Radius: .88 •Rating Load: 2500 lbs •Size: 1/2-13 •Thread Length: 1-1/4 •Torque (ft/lbs): 28 •Type: Center-Pull Envirolox ™

Description:
•Center-pull Envirolox TM Hoist Ring •Full 360 degree Swivel and 180 degree Pivot Action •Rated at 5:1 Strength Factor •Material:Alloy Steel •Finish: Envirolox TM Electroless Nickel Protective Coating •U-Bar, Bolt, Pins, Base, Washer and Bushing are Magnetic Particle Inspected •Washer: Finish: Envirolox TM Electroless Nickel Protective Coating •Proof Tested to 200% of Rated Load Capacity

Shipping Info:
•Actual Weight - 2.5000
