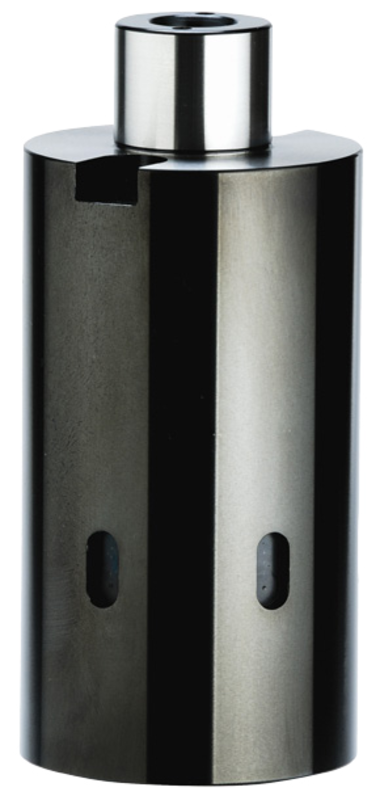

IR40-SM27-060 Shell Mill Holder

Item #: SG81ER40027060
Manufacturer: Prime Tool
Mfg #: T12ER40A13

Technical Specifications:
*Base Coupling OD: 2.480 / 63mm *Base Coupling Size: IR40 *Body Length: 2.736 / 69.5mm *Brand Name: Prime Tool *Dimension D1: 2.362 / 60mm *Key Height: 0.236 / 6mm *Key Width: 0.472 / 12mm *Length: 2.362 / 60mm *Overall Length: 5.118 / 130mm *Pilot Diameter: 1.063 / 27mm *Pilot Length: 0.827 / 21mm *Shell Mill Pilot Size: SM27 *Thread Size: M12 *Weight: 5.292 lbs

Description:
*Precision Ground Pilot and Threads *Shaft Tolerance: H3 *Case Hardness: HRC 56 +/-2 *Seat Runout: 0.005mm (0.0002") *Balance: G2.5 @ 25,000 RPM

Shipping Info:
*Actual Weight - 5.2920
