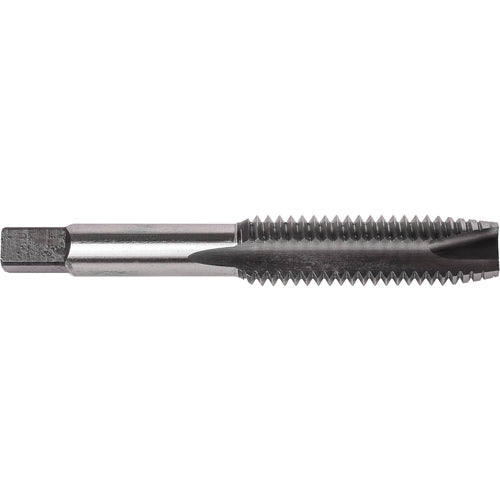

5/8″- 18 3 Flute Plug Union Butterfield HSS Bright UNF Relieved Style Spiral Point ANSI E-code # 15855/8X18H33FLNO2
Item #: TD251012774
Brand: Union Butterfield
Model #: 6007316
| Product Specifications | |
|---|---|
| Thread Standard | NF |
| Applicable Material | Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials |
| Thread Size | 5/8″ - 18 |
| Connection Diameter Machine Side (DCONMS) | 0.48″ |
| Thread Diameter Size (TDZ) | 5/8″ |
| Thread Cutting Part Length (THL) | 1-13/16″ |
| Threads per Inch (TPI) | 18 |
| End Shape | Spiral Point |
| Thread Tolerance Class (TCTR) | 3B|H3 |
| Style | Plug |
| Overall Length (OAL) | 3-13/16″ |
| Cutting Direction (HAND) | Right Hand |
| Coating | Bright |
| Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 3 |
| Length Group | 2.5xD |
| Cutting Edge Material | HSS |
| Square Size | 0.36″ |
| Standard | ANSI |
| Measurement Type | Fractional |
